fp_VerticalContainer Class Reference

#include <fp_Column.h>

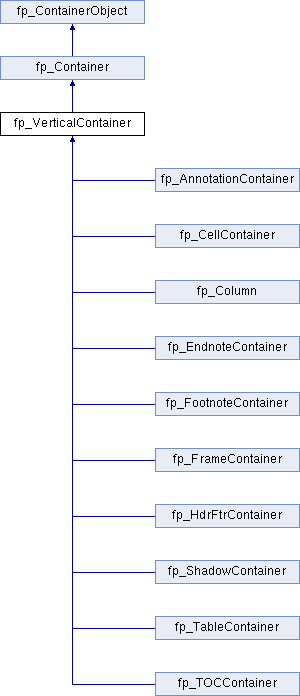

Inheritance diagram for fp_VerticalContainer:

fp_Container fp_ContainerObject fp_AnnotationContainer fp_CellContainer fp_Column fp_EndnoteContainer fp_EndnoteSectionContainer fp_FootnoteContainer fp_FrameContainer fp_HdrFtrContainer fp_ShadowContainer fp_TableContainer fp_TOCContainer

List of all members.

Public Member Functions

 fp_VerticalContainer (FP_ContainerType iType, fl_SectionLayout *pSectionLayout)
virtual ~fp_VerticalContainer ()
virtual void setWidth (UT_sint32)
void _setWidth (UT_sint32 iWidth)
virtual void setHeight (UT_sint32)
void _setHeight (UT_sint32 iHeight)
virtual void setMaxHeight (UT_sint32)
virtual void setX (UT_sint32, bool bDontClearIfNeeded=false)
virtual void setY (UT_sint32)
UT_sint32 getMaxHeight (void) const
virtual UT_sint32 getWidth (void) const
virtual UT_sint32 getX (void) const
void _setX (UT_sint32 iX)
virtual UT_sint32 getY (void) const
UT_sint32 getY (GR_Graphics *pG) const
void _setY (UT_sint32 iY)
virtual UT_sint32 getHeight (void) const
UT_sint32 getColumnGap (void) const
bool getIntentionallyEmpty (void) const
void setIntentionallyEmpty (bool b)
fp_Container * getFirstContainer (void) const
fp_Container * getLastContainer (void) const
UT_sint32 getYoffsetFromTable (fp_Container *pT, fp_Container *pCell, fp_ContainerObject *pCon)
bool insertContainerAfter (fp_Container *pNewContainer, fp_Container *pAfterContainer)
bool insertContainer (fp_Container *)
bool addContainer (fp_Container *)
void removeContainer (fp_Container *pContainer, bool bClear=false)
virtual UT_uint32 distanceFromPoint (UT_sint32 x, UT_sint32 y)
virtual void mapXYToPosition (UT_sint32 xPos, UT_sint32 yPos, PT_DocPosition &pos, bool &bBOL, bool &bEOL, bool &isTOC)
void getOffsets (fp_ContainerObject *pContainer, UT_sint32 &xoff, UT_sint32 &yoff)
fp_TableContainer * getCorrectBrokenTable (fp_Container *pLine)
fp_TOCContainer * getCorrectBrokenTOC (fp_Container *pLine)
void getScreenOffsets (fp_ContainerObject *pContainer, UT_sint32 &xoff, UT_sint32 &yoff)
virtual UT_Rect * getScreenRect ()
virtual void markDirtyOverlappingRuns (UT_Rect &recScreen)
virtual void draw (dg_DrawArgs *)
virtual void draw (GR_Graphics *)
void clearScreen (void)
void bumpContainers (fp_ContainerObject *pLastContainerToKeep)
virtual bool isVBreakable (void)
virtual bool isHBreakable (void)
virtual UT_sint32 wantVBreakAt (UT_sint32)
virtual UT_sint32 wantHBreakAt (UT_sint32)
virtual fp_ContainerObject * VBreakAt (UT_sint32)
virtual fp_ContainerObject * HBreakAt (UT_sint32)
void recalcMaxWidth (bool bDontClearIfNeeded=false)
virtual UT_sint32 getMarginBefore (void) const
virtual UT_sint32 getMarginAfter (void) const
virtual void setAssignedScreenHeight (UT_sint32)
virtual fp_Container * getNextContainerInSection (void) const
virtual fp_Container * getPrevContainerInSection (void) const
bool validate (void)
FV_View * getView (void) const
UT_sint32 getNumWrapped (void) const
void addWrappedLine (fp_Line *pLine)
void clearWrappedLines (void)
fp_Line * getNthWrappedLine (UT_sint32 i)

Protected Member Functions

void _setMaxContainerHeight (UT_sint32 iContainerHeight)
UT_sint32 _getMaxContainerHeight (void) const
virtual void _drawBoundaries (dg_DrawArgs *pDA)

Protected Attributes

UT_sint32 m_iRedrawHeight

Private Attributes

UT_sint32 m_iWidth
UT_sint32 m_iHeight
UT_sint32 m_iMaxHeight
UT_sint32 m_iX
UT_sint32 m_iY
bool m_bIntentionallyEmpty
UT_sint32 m_imaxContainerHeight
UT_GenericVector< fp_Line * > m_vecWrappedLines

Constructor & Destructor Documentation

fp_VerticalContainer::fp_VerticalContainer ( FP_ContainerType  iType,
fl_SectionLayout *  pSectionLayout
)

Create container

Parameters:
iType Container type
pSectionLayout Section layout type used for this container

References clearWrappedLines().

fp_VerticalContainer::~fp_VerticalContainer (  )  [virtual]

Destruct container

Note:
The Containers in vector of the container are not destructed. They are owned by the logical hierarchy (i.e., the fl_Container classes like fl_BlockLayout), not the physical hierarchy.

Member Function Documentation

void fp_VerticalContainer::setWidth ( UT_sint32  iWidth  )  [virtual]

Set width

Parameters:
iWidth Width of container
Todo:
Should force re-line-break operations on all blocks in the container

Implements fp_ContainerObject.

Reimplemented in fp_CellContainer.

References FP_CONTAINER_COLUMN, fp_ContainerObject::getContainerType(), fp_Container::getFillType(), fp_ContainerObject::getGraphics(), fp_ContainerObject::getSectionLayout(), m_iWidth, fl_SectionLayout::setImageWidth(), and fg_FillType::setWidth().

Referenced by fl_AnnotationLayout::_createAnnotationContainer(), fl_EndnoteLayout::_createEndnoteContainer(), fl_FootnoteLayout::_createFootnoteContainer(), fl_FrameLayout::_createFrameContainer(), fl_TOCLayout::_createTOCContainer(), fp_Page::_reformatColumns(), fl_TableLayout::createTableContainer(), fp_HdrFtrContainer::fp_HdrFtrContainer(), fp_ShadowContainer::fp_ShadowContainer(), fp_TOCContainer::setContainer(), fp_TableContainer::setContainer(), fp_TableContainer::setToAllocation(), and fp_CellContainer::setWidth().

void fp_VerticalContainer::_setWidth ( UT_sint32  iWidth  )  [inline]

Referenced by FV_FrameEdit::_mouseDrag().

void fp_VerticalContainer::setHeight ( UT_sint32  iHeight  )  [virtual]

Set height

Parameters:
iHeight Height of container

Implements fp_ContainerObject.

Reimplemented in fp_CellContainer, and fp_TableContainer.

References FP_CONTAINER_CELL, FP_CONTAINER_COLUMN, FP_CONTAINER_TABLE, FP_CONTAINER_TOC, fp_ContainerObject::getContainerType(), fp_Container::getFillType(), fp_ContainerObject::getGraphics(), fp_TOCContainer::getHeight(), fp_TableContainer::getHeight(), getMaxHeight(), fp_ContainerObject::getSectionLayout(), fp_TOCContainer::isThisBroken(), fp_TableContainer::isThisBroken(), m_iHeight, fg_FillType::setHeight(), fl_SectionLayout::setImageHeight(), and UT_DEBUGMSG.

Referenced by fl_FrameLayout::_createFrameContainer(), fp_HdrFtrContainer::fp_HdrFtrContainer(), fp_ShadowContainer::fp_ShadowContainer(), fp_TOCContainer::layout(), fp_EndnoteContainer::layout(), fp_AnnotationContainer::layout(), fp_FootnoteContainer::layout(), fp_HdrFtrContainer::layout(), fp_ShadowContainer::layout(), fp_Column::layout(), fp_TableContainer::setHeight(), fp_CellContainer::setHeight(), and fp_TOCContainer::VBreakAt().

void fp_VerticalContainer::_setHeight ( UT_sint32  iHeight  )  [inline]

Referenced by FV_FrameEdit::_mouseDrag().

void fp_VerticalContainer::setMaxHeight ( UT_sint32  iMaxHeight  )  [virtual]

Set maximum height

Parameters:
iMaxHeight Maximum height of container

References m_iMaxHeight.

Referenced by fp_Page::_reformatColumns(), fl_TableLayout::doSimpleChange(), fp_ShadowContainer::fp_ShadowContainer(), fp_TableContainer::setToAllocation(), fp_CellContainer::setToAllocation(), and fp_Page::TopBotMarginChanged().

void fp_VerticalContainer::setX ( UT_sint32  iX,
bool  bDontClearIfNeeded = false
) [virtual]

Set X position of container

Parameters:
iX New X position
Before the postition of the container is changed, its content is first cleared from the screen.

Implements fp_ContainerObject.

References clearScreen(), and m_iX.

Referenced by fp_Page::_reformatAnnotations(), fp_Page::_reformatColumns(), fp_Page::_reformatFootnotes(), fp_TableContainer::layout(), fl_BlockLayout::setFramesOnPage(), fp_CellContainer::setToAllocation(), and fp_Page::updateColumnX().

void fp_VerticalContainer::setY ( UT_sint32  iY  )  [virtual]

Set Y position of container

Parameters:
iY New Y position
Before the postition of the container is changed, its content is first cleared from the screen.

Implements fp_ContainerObject.

Reimplemented in fp_EndnoteContainer, fp_TableContainer, and fp_TOCContainer.

References clearScreen(), and m_iY.

Referenced by fp_Page::_reformatAnnotations(), fp_Page::_reformatColumns(), fp_Page::_reformatFootnotes(), fl_TableLayout::doSimpleChange(), fp_CellContainer::layout(), fl_BlockLayout::setFramesOnPage(), fp_CellContainer::setToAllocation(), fp_TOCContainer::setY(), fp_TableContainer::setY(), fp_Page::TopBotMarginChanged(), and fp_CellContainer::VBreakAt().

UT_sint32 fp_VerticalContainer::getMaxHeight ( void   )  const [inline]

Get container's max height

Returns:
Max height

Reimplemented in fp_Column.

Referenced by fp_ShadowContainer::_drawHdrFtrBoundaries(), fp_TableContainer::adjustBrokenTables(), fp_TOCContainer::adjustBrokenTOCs(), fp_ShadowContainer::draw(), fp_Column::getMaxHeight(), fp_ShadowContainer::layout(), fp_TableContainer::mapXYToPosition(), and setHeight().

virtual UT_sint32 fp_VerticalContainer::getWidth ( void   )  const [inline, virtual]

Get container's width

Returns:
Width

Implements fp_ContainerObject.

Reimplemented in fp_FrameContainer.

Referenced by fp_TableContainer::_drawBoundaries(), fp_CellContainer::_drawBoundaries(), fp_Column::_drawBoundaries(), fp_TableContainer::_drawBrokenBoundaries(), fp_ShadowContainer::_drawHdrFtrBoundaries(), fl_BlockLayout::_stuffAllRunsOnALine(), fp_TOCContainer::draw(), fp_CellContainer::draw(), fp_Page::draw(), fp_EndnoteContainer::draw(), fp_AnnotationContainer::draw(), fp_FootnoteContainer::draw(), fp_CellContainer::drawBroken(), fl_BlockLayout::formatWrappedFromHere(), fp_FrameContainer::getFullWidth(), fl_BlockLayout::getLeftRightForWrapping(), fl_BlockLayout::getNewContainer(), fl_BlockLayout::getNextWrappedLine(), getScreenRect(), fl_TOCLayout::getTabPosition(), FV_View::getTopRulerInfo(), fp_FrameContainer::getWidth(), fp_TableContainer::layout(), fp_TableContainer::mapXYToPosition(), fp_Page::mapXYToPosition(), fp_CellContainer::setLineMarkers(), fp_CellContainer::setWidth(), and fp_CellContainer::sizeRequest().

UT_sint32 fp_VerticalContainer::getX ( void   )  const [virtual]

Get container's X position

Returns:
X position

Implements fp_ContainerObject.

Reimplemented in fp_FrameContainer.

References m_iX.

Referenced by fp_CellContainer::_clear(), fp_CellContainer::_drawBoundaries(), fp_TableContainer::_drawBrokenBoundaries(), fp_CellContainer::_getBrokenRect(), FV_View::_getMouseContext(), fp_TOCContainer::clearScreen(), fp_EndnoteContainer::clearScreen(), fp_AnnotationContainer::clearScreen(), fp_FootnoteContainer::clearScreen(), FV_View::cmdInsertPositionedGraphic(), Defun(), fp_CellContainer::draw(), fp_Page::draw(), fp_EndnoteContainer::draw(), fp_AnnotationContainer::draw(), fp_FootnoteContainer::draw(), draw(), fp_CellContainer::drawBroken(), fp_FrameContainer::getFullX(), getScreenOffsets(), fp_CellContainer::getScreenPositions(), FV_View::getTopRulerInfo(), fp_FrameContainer::getX(), fp_TableContainer::layout(), fp_TableContainer::mapXYToPosition(), fp_Page::mapXYToPosition(), mapXYToPosition(), and fp_CellContainer::setLineMarkers().

void fp_VerticalContainer::_setX ( UT_sint32  iX  )  [inline]

Referenced by FV_FrameEdit::_mouseDrag(), fp_HdrFtrContainer::fp_HdrFtrContainer(), fp_ShadowContainer::fp_ShadowContainer(), and FV_FrameEdit::mouseRelease().

UT_sint32 fp_VerticalContainer::getY ( void   )  const [virtual]

Get container's Y position.

Returns:
Y position

Implements fp_ContainerObject.

Reimplemented in fp_EndnoteContainer, and fp_FrameContainer.

References FL_CONTAINER_DOCSECTION, fl_ContainerLayout::getContainerType(), fp_ContainerObject::getContainerType(), fl_ContainerLayout::getDocSectionLayout(), fp_ContainerObject::getSectionLayout(), fl_DocSectionLayout::getTopMargin(), getView(), m_iY, and VIEW_PRINT.

Referenced by fb_ColumnBreaker::_breakTable(), fb_ColumnBreaker::_breakTOC(), fp_TableContainer::_brokenDraw(), fp_CellContainer::_clear(), fp_TableContainer::_drawBoundaries(), fp_CellContainer::_drawBoundaries(), fp_TableContainer::_drawBrokenBoundaries(), fp_CellContainer::_getBrokenRect(), AP_LeftRuler::_getCellMarkerRects(), FV_View::_getMouseContext(), FV_View::_moveInsPtNextPrevLine(), fp_TableContainer::adjustBrokenTables(), fp_TOCContainer::adjustBrokenTOCs(), fp_TableContainer::breakCellsAt(), fp_TOCContainer::clearScreen(), fp_CellContainer::clearScreen(), fp_AnnotationContainer::clearScreen(), fp_FootnoteContainer::clearScreen(), fp_CellContainer::doesOverlapBrokenTable(), fl_TableLayout::doSimpleChange(), fp_CellContainer::draw(), fp_Page::draw(), fp_AnnotationContainer::draw(), fp_FootnoteContainer::draw(), fp_CellContainer::drawBroken(), fp_FrameContainer::getBlocksAroundFrame(), fp_CellContainer::getBrokenTable(), fp_CellContainer::getCellY(), fp_FrameContainer::getFullY(), fp_CellContainer::getLeftTopOffsets(), getOffsets(), getScreenOffsets(), fp_CellContainer::getScreenPositions(), fp_CellContainer::getSpannedHeight(), fp_FrameContainer::getY(), fp_TableContainer::getYOfRow(), fp_TableContainer::isInBrokenTable(), fp_TableContainer::layout(), fp_CellContainer::layout(), fp_Column::layout(), fp_TableContainer::mapXYToPosition(), fp_Page::mapXYToPosition(), mapXYToPosition(), fp_TOCContainer::setY(), fp_TableContainer::setY(), fp_CellContainer::tweakBrokenTable(), fp_TOCContainer::VBreakAt(), fp_TableContainer::VBreakAt(), fp_CellContainer::VBreakAt(), fp_TableContainer::wantVBreakAt(), and fp_CellContainer::wantVBreakAt().

UT_sint32 fp_VerticalContainer::getY ( GR_Graphics *  pG  )  const

Get container's Y position. This version checks for a mismatch between view mode and if we're printing.

Returns:
Y position

References GR_Graphics::DGP_SCREEN, fp_ContainerObject::getSectionLayout(), getView(), m_iY, GR_Graphics::queryProperties(), and VIEW_PRINT.

void fp_VerticalContainer::_setY ( UT_sint32  iY  )  [inline]

Referenced by FV_FrameEdit::_mouseDrag(), fp_HdrFtrContainer::fp_HdrFtrContainer(), fp_ShadowContainer::fp_ShadowContainer(), and FV_FrameEdit::mouseRelease().

virtual UT_sint32 fp_VerticalContainer::getHeight ( void   )  const [inline, virtual]

Get container's height

Returns:
Height

Implements fp_ContainerObject.

Reimplemented in fp_FrameContainer.

Referenced by fp_TableContainer::_brokenDraw(), fp_CellContainer::_clear(), fp_CellContainer::_drawBoundaries(), fp_Column::_drawBoundaries(), fp_Page::_reformatAnnotations(), fp_Page::_reformatColumns(), fp_Page::_reformatFootnotes(), fp_TableContainer::adjustBrokenTables(), fp_TOCContainer::adjustBrokenTOCs(), fp_TableContainer::breakCellsAt(), fp_Page::breakPage(), fb_ColumnBreaker::breakSection(), fp_Line::clearScreen(), fp_EndnoteContainer::clearScreen(), fp_AnnotationContainer::clearScreen(), fp_CellContainer::draw(), fp_Page::draw(), fp_EndnoteContainer::draw(), fp_AnnotationContainer::draw(), fp_FootnoteContainer::draw(), fp_CellContainer::drawBroken(), fp_CellContainer::drawLines(), fp_Page::getAnnotationHeight(), fp_Page::getAvailableHeight(), fp_Page::getAvailableHeightForColumn(), fp_Page::getFilledHeight(), fp_Page::getFootnoteHeight(), fp_FrameContainer::getFullHeight(), fp_TOCContainer::getHeight(), fp_TableContainer::getHeight(), fp_FrameContainer::getHeight(), getScreenRect(), fp_CellContainer::getSpannedHeight(), fp_TOCContainer::layout(), fp_CellContainer::layout(), fp_EndnoteContainer::layout(), fp_AnnotationContainer::layout(), fp_FootnoteContainer::layout(), fp_HdrFtrContainer::layout(), fp_ShadowContainer::layout(), fp_Column::layout(), fp_Page::mapXYToPosition(), fp_CellContainer::setHeight(), fp_CellContainer::setLineMarkers(), fp_TableContainer::setToAllocation(), fp_CellContainer::tweakBrokenTable(), fp_TOCContainer::VBreakAt(), fp_TableContainer::VBreakAt(), fp_CellContainer::VBreakAt(), fp_TableContainer::wantVBreakAt(), and fp_CellContainer::wantVBreakAt().

UT_sint32 fp_VerticalContainer::getColumnGap ( void   )  const

Get column gap from page the container is located on

Returns:
Column gap

References fp_Container::getColumn(), fp_Page::getColumnGap(), and fp_Container::getPage().

bool fp_VerticalContainer::getIntentionallyEmpty ( void   )  const [inline]

Get container's intentionally empty flag

Returns:
Empty

void fp_VerticalContainer::setIntentionallyEmpty ( bool  b  )  [inline]

Set container's intentionally empty flag

fp_Container * fp_VerticalContainer::getFirstContainer ( void   )  const

Return first line in the container

Returns:
The first line, or NULL if the container is empty

References fp_Container::countCons(), and fp_Container::getNthCon().

Referenced by FV_View::_fixInsertionPointCoords(), FV_View::_moveInsPtNextPrevLine(), fp_Page::_reformatColumns(), fp_Page::breakPage(), fb_ColumnBreaker::breakSection(), fp_TableContainer::containsAnnotations(), fp_CellContainer::containsAnnotations(), fp_TableContainer::containsFootnoteReference(), fp_CellContainer::containsFootnoteReference(), FV_View::convertPositionedToInLine(), fp_TableContainer::deleteBrokenTables(), fp_TableContainer::getAnnotationContainers(), fp_CellContainer::getAnnotationContainers(), fp_FrameContainer::getBlocksAroundFrame(), getCorrectBrokenTable(), fp_Page::getFilledHeight(), fp_Page::getFirstLastPos(), fp_TableContainer::getFootnoteContainers(), fp_CellContainer::getFootnoteContainers(), and fp_Page::mapXYToPosition().

fp_Container * fp_VerticalContainer::getLastContainer ( void   )  const

Return last line in the container

Returns:
The last line, or NULL if the container is empty

References fp_Container::countCons(), and fp_Container::getNthCon().

Referenced by FV_View::_moveInsPtNextPrevLine(), fp_Page::_reformatColumns(), fp_Page::breakPage(), fb_ColumnBreaker::breakSection(), fp_Page::getFirstLastPos(), and fl_DocSectionLayout::getNewContainer().

UT_sint32 fp_VerticalContainer::getYoffsetFromTable ( fp_Container *  pT,
fp_Container *  pCell,
fp_ContainerObject *  pCon
)

This method returns the vertical offset due to a table broken across more than 1 page.

References fp_Container::getNext(), fp_TableContainer::getYBreak(), and fp_TableContainer::isInBrokenTable().

Referenced by getOffsets(), and getScreenOffsets().

bool fp_VerticalContainer::insertContainerAfter ( fp_Container *  pNewContainer,
fp_Container *  pAfterContainer
)

Insert line in container after specified line

Parameters:
pNewContainer Container to be inserted
pAfterContainer After this line
Todo:
This function has been hacked to handle the case where pAfterContainer is NULL. That case should not happen. Bad callers should be identified and fixed, and this function should be cleaned up.

References fp_Container::addCon(), fp_ContainerObject::clearScreen(), fp_Container::countCons(), fp_Container::findCon(), FP_CONTAINER_ANNOTATION, FP_CONTAINER_LINE, fp_ContainerObject::getContainerType(), fp_Container::insertConAt(), fp_Container::recalcMaxWidth(), fp_Container::setContainer(), UT_ASSERT, and UT_return_val_if_fail.

Referenced by fl_BlockLayout::getNewContainer(), fl_BlockLayout::getNextWrappedLine(), and FL_DocLayout::insertEndnoteContainer().

bool fp_VerticalContainer::insertContainer ( fp_Container *  pNewContainer  )

Insert line at the front/top of the container

Parameters:
pNewContainer Container

References fp_ContainerObject::clearScreen(), FP_CONTAINER_ANNOTATION, fp_ContainerObject::getContainerType(), fp_Container::insertConAt(), fp_Container::recalcMaxWidth(), fp_Container::setContainer(), UT_ASSERT, UT_return_val_if_fail, and xxx_UT_DEBUGMSG.

Referenced by fl_BlockLayout::_stuffAllRunsOnALine(), bumpContainers(), fl_BlockLayout::getNewContainer(), and FL_DocLayout::insertEndnoteContainer().

bool fp_VerticalContainer::addContainer ( fp_Container *  pNewContainer  )

Append line at the end/bottom of the container

Parameters:
pNewContainer Container

References fp_Container::addCon(), fp_ContainerObject::clearScreen(), FP_CONTAINER_ANNOTATION, fp_Container::getContainer(), fp_ContainerObject::getContainerType(), fp_Container::recalcMaxWidth(), fp_Container::setContainer(), UT_ASSERT, UT_return_val_if_fail, and xxx_UT_DEBUGMSG.

Referenced by fb_ColumnBreaker::breakSection(), bumpContainers(), FL_DocLayout::insertEndnoteContainer(), and fp_TableContainer::tableAttach().

void fp_VerticalContainer::removeContainer ( fp_Container *  pContainer,
bool  bClear = false
)

Remove line from container

Parameters:
pContainer Container
bClear if true clear screen.
Note:
The line is not destructed, as it is owned by the logical hierarchy.

References fp_ContainerObject::clearScreen(), fp_Container::countCons(), fp_Container::deleteNthCon(), fp_Container::findCon(), FP_CONTAINER_LINE, fp_ContainerObject::getContainerType(), fp_Container::setContainer(), UT_ASSERT, and xxx_UT_DEBUGMSG.

Referenced by fl_BlockLayout::_removeLine(), fb_ColumnBreaker::breakSection(), fl_TOCLayout::collapse(), fl_CellLayout::collapse(), fl_TableLayout::collapse(), fl_DocSectionLayout::collapse(), and FL_DocLayout::removeEndnoteContainer().

UT_uint32 fp_VerticalContainer::distanceFromPoint ( UT_sint32  x,
UT_sint32  y
) [virtual]

Compute the distance from point to the container's circumference

Parameters:
x X coordinate of point
y Y coordinate of point
Returns:
Distance between container's circumference and point

Implements fp_Container.

References fp_ContainerObject::getGraphics(), m_iHeight, m_iWidth, m_iX, m_iY, and GR_Graphics::tlu().

Referenced by fp_TableContainer::mapXYToPosition(), and fp_Page::mapXYToPosition().

void fp_VerticalContainer::mapXYToPosition ( UT_sint32  x,
UT_sint32  y,
PT_DocPosition &  pos,
bool &  bBOL,
bool &  bEOL,
bool &  isTOC
) [virtual]

Find document position from X and Y coordinates

Parameters:
x X coordinate
y Y coordinate
Return values:
pos Document position
bBOL True if position is at begining of line, otherwise false
bEOL True if position is at end of line, otherwise false

Implements fp_ContainerObject.

Reimplemented in fp_TableContainer, and fp_TOCContainer.

References fl_ContainerLayout::canContainPoint(), fp_Line::canContainPoint(), fp_Container::countCons(), FL_FRAME_WRAPPER_IMAGE, FP_CONTAINER_CELL, FP_CONTAINER_COLUMN, FP_CONTAINER_FRAME, FP_CONTAINER_LINE, FP_CONTAINER_TABLE, FP_CONTAINER_TOC, fp_Line::getBlock(), fp_Container::getContainer(), fp_ContainerObject::getContainerType(), fp_Page::getDocLayout(), fl_SectionLayout::getFirstBlock(), fl_BlockLayout::getFirstRun(), FL_DocLayout::getFirstSection(), fl_FrameLayout::getFrameType(), fp_ContainerObject::getHeight(), fp_CellContainer::getLeftAttach(), fp_Run::getLine(), fp_Line::getMaxWidth(), fp_Container::getNext(), fl_ContainerLayout::getNextBlockInDocument(), fp_Container::getNthCon(), fp_Container::getPage(), fl_ContainerLayout::getPosition(), fl_ContainerLayout::getPrevBlockInDocument(), fp_ContainerObject::getSectionLayout(), fp_Line::getX(), getX(), fp_ContainerObject::getX(), fp_Line::getY(), getY(), fp_ContainerObject::getY(), fp_Line::isSameYAsPrevious(), fp_Line::isWrapped(), fp_Line::mapXYToPosition(), fp_ContainerObject::mapXYToPosition(), fp_TableContainer::mapXYToPosition(), UT_ASSERT_HARMLESS, UT_MIN, UT_return_if_fail, UT_SHOULD_NOT_HAPPEN, and xxx_UT_DEBUGMSG.

Referenced by fp_TOCContainer::mapXYToPosition(), fp_TableContainer::mapXYToPosition(), and fp_Page::mapXYToPosition().

void fp_VerticalContainer::getOffsets ( fp_ContainerObject *  pContainer,
UT_sint32 &  xoff,
UT_sint32 &  yoff
)

Get line's offsets relative to this container

Parameters:
pContainer Container
Return values:
xoff Container's X offset relative to container
yoff Container's Y offset relative to container

References FL_DocLayout::displayAnnotations(), fl_HdrFtrSectionLayout::findShadow(), FP_CONTAINER_ANNOTATION, FP_CONTAINER_CELL, FP_CONTAINER_COLUMN, FP_CONTAINER_COLUMN_SHADOW, FP_CONTAINER_FOOTNOTE, FP_CONTAINER_HDRFTR, FP_CONTAINER_TABLE, FP_CONTAINER_TOC, fp_Container::getColumn(), fp_Container::getContainer(), fp_ContainerObject::getContainerString(), fp_ContainerObject::getContainerType(), getCorrectBrokenTable(), getCorrectBrokenTOC(), fp_Page::getDocLayout(), fp_TableContainer::getFirstBrokenTable(), fp_TOCContainer::getFirstBrokenTOC(), fl_HdrFtrShadow::getFirstContainer(), fl_HdrFtrSectionLayout::getFirstShadow(), fp_TableContainer::getMasterTable(), fp_TOCContainer::getMasterTOC(), fp_Page::getNthColumnLeader(), fp_Page::getOwningSection(), fp_Column::getPage(), fp_TableContainer::getPage(), fp_Container::getPage(), fp_Page::getScreenOffsets(), fl_DocSectionLayout::getTopMargin(), getView(), FV_View::getViewMode(), fp_ContainerObject::getX(), getY(), fp_ContainerObject::getY(), getYoffsetFromTable(), fp_ContainerObject::isColumnType(), fp_TOCContainer::isThisBroken(), fp_TableContainer::isThisBroken(), VIEW_PRINT, and xxx_UT_DEBUGMSG.

Referenced by FV_View::_moveInsPtNextPrevLine(), FV_FrameEdit::getFrameStrings(), fp_Line::getOffsets(), and fl_BlockLayout::setFramesOnPage().

fp_TableContainer * fp_VerticalContainer::getCorrectBrokenTable ( fp_Container *  pCon  )

This method returns the correct broken table for this line.

References FP_CONTAINER_CELL, FP_CONTAINER_TABLE, fp_Container::getContainer(), fp_ContainerObject::getContainerType(), getFirstContainer(), fp_ContainerObject::getHeight(), fp_ContainerObject::getY(), UT_return_val_if_fail, and xxx_UT_DEBUGMSG.

Referenced by fp_CellContainer::_getBrokenRect(), getOffsets(), getScreenOffsets(), and fp_CellContainer::getScreenPositions().

fp_TOCContainer * fp_VerticalContainer::getCorrectBrokenTOC ( fp_Container *  pCon  )

This method returns the correct broken TOC for this line.

References FP_CONTAINER_TOC, fp_Container::getContainer(), fp_ContainerObject::getContainerType(), fp_ContainerObject::getHeight(), fp_ContainerObject::getY(), UT_return_val_if_fail, and xxx_UT_DEBUGMSG.

Referenced by getOffsets(), and getScreenOffsets().

void fp_VerticalContainer::getScreenOffsets ( fp_ContainerObject *  pContainer,
UT_sint32 &  xoff,
UT_sint32 &  yoff
)

Get Containers' offsets relative to the screen

Parameters:
pContainer Container which we want to find the absolute position of.
Return values:
xoff Container's X offset relative the screen
yoff Container's Y offset relative the screen

Reimplemented in fp_HdrFtrContainer.

References FP_CONTAINER_ANNOTATION, FP_CONTAINER_CELL, FP_CONTAINER_COLUMN, FP_CONTAINER_COLUMN_SHADOW, FP_CONTAINER_FOOTNOTE, FP_CONTAINER_FRAME, FP_CONTAINER_TABLE, FP_CONTAINER_TOC, fp_Container::getContainer(), fp_ContainerObject::getContainerString(), fp_ContainerObject::getContainerType(), getCorrectBrokenTable(), getCorrectBrokenTOC(), fp_TableContainer::getFirstBrokenTable(), fp_TableContainer::getMasterTable(), fp_Container::getNthCon(), fp_Page::getOwningSection(), fp_FrameContainer::getPage(), fp_AnnotationContainer::getPage(), fp_FootnoteContainer::getPage(), fp_ShadowContainer::getPage(), fp_Column::getPage(), fp_Container::getPage(), fp_Page::getScreenOffsets(), fl_DocSectionLayout::getTopMargin(), getView(), FV_View::getViewMode(), getX(), fp_ContainerObject::getX(), getY(), fp_ContainerObject::getY(), getYoffsetFromTable(), fp_ContainerObject::isColumnType(), fp_TableContainer::isThisBroken(), UT_ASSERT, UT_SHOULD_NOT_HAPPEN, VIEW_PRINT, and xxx_UT_DEBUGMSG.

Referenced by fp_Line::_doClearScreenFromRunToEnd(), fp_Line::clearScreen(), fp_EndnoteContainer::clearScreen(), fp_AnnotationContainer::clearScreen(), FV_View::convertPositionedToInLine(), fp_Line::draw(), fp_Line::getScreenOffsets(), and getScreenRect().

UT_Rect * fp_VerticalContainer::getScreenRect ( void   )  [virtual]

return an rectangle that covers this object on the screen The calling routine is resposible for deleting the returned struct

Implements fp_ContainerObject.

References FP_CONTAINER_FRAME, fp_ContainerObject::getContainerType(), fp_FrameContainer::getFullHeight(), fp_FrameContainer::getFullWidth(), fp_FrameContainer::getFullX(), fp_FrameContainer::getFullY(), getHeight(), fp_Container::getNthCon(), fp_Container::getPage(), FV_View::getPageScreenOffsets(), getScreenOffsets(), getView(), getWidth(), fp_ContainerObject::getX(), and fp_ContainerObject::getY().

Referenced by fp_FrameContainer::draw(), fl_BlockLayout::formatWrappedFromHere(), FV_VisualDragText::getImageFromSelection(), fp_FrameContainer::getLeftPad(), fl_BlockLayout::getLeftRightForWrapping(), fl_BlockLayout::getNextWrappedLine(), fp_FrameContainer::getRightPad(), fp_Page::markDirtyOverlappingRuns(), markDirtyOverlappingRuns(), and fp_FrameContainer::overlapsRect().

void fp_VerticalContainer::markDirtyOverlappingRuns ( UT_Rect &  recScreen  )  [virtual]

Marks Dirty any runs that overlap the supplied rectangle. This rectangle is relative to the screen.

Implements fp_ContainerObject.

References fp_Container::countCons(), DELETEP, fp_Container::getNthCon(), getScreenRect(), UT_Rect::intersectsRect(), and fp_ContainerObject::markDirtyOverlappingRuns().

Referenced by fp_Page::markDirtyOverlappingRuns().

void fp_VerticalContainer::draw ( dg_DrawArgs *  pDA  )  [virtual]

Draw container content

Parameters:
pDA Draw arguments

Implements fp_ContainerObject.

Reimplemented in fp_ShadowContainer, fp_HdrFtrContainer, fp_EndnoteSectionContainer, fp_FootnoteContainer, fp_AnnotationContainer, fp_EndnoteContainer, fp_FrameContainer, fp_CellContainer, fp_TableContainer, and fp_TOCContainer.

References _drawBoundaries(), _getMaxContainerHeight(), dg_DrawArgs::bDirtyRunsOnly, fp_Container::countCons(), fp_ContainerObject::draw(), FP_CONTAINER_LINE, FP_CONTAINER_TABLE, FP_CONTAINER_TOC, GR_Graphics::getClipRect(), fp_ContainerObject::getContainerType(), fp_TOCContainer::getHeight(), fp_TableContainer::getHeight(), fp_ContainerObject::getHeight(), fp_TableContainer::getMasterTable(), fp_TOCContainer::getMasterTOC(), fp_Container::getNthCon(), getX(), fp_ContainerObject::getX(), fp_ContainerObject::getY(), UT_Rect::height, fp_Line::isSameYAsPrevious(), fp_TOCContainer::isThisBroken(), fp_TableContainer::isThisBroken(), m_iRedrawHeight, dg_DrawArgs::pG, GR_Graphics::tlu(), UT_Rect::top, UT_DEBUGMSG, UT_MAX, dg_DrawArgs::xoff, xxx_UT_DEBUGMSG, and dg_DrawArgs::yoff.

Referenced by fp_Page::draw().

virtual void fp_VerticalContainer::draw ( GR_Graphics *   )  [inline, virtual]

Implements fp_ContainerObject.

Reimplemented in fp_ShadowContainer, fp_FootnoteContainer, fp_AnnotationContainer,
