AbiWord: XAP_UnixDialog_Insert_Symbol Class Reference

#include <xap_UnixDlg_Insert_Symbol.h>

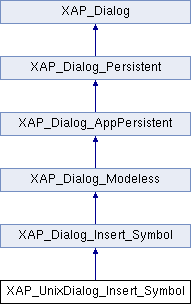

Inheritance diagram for XAP_UnixDialog_Insert_Symbol:

List of all members.

Public Types
enum	ResponseId { BUTTON_INSERT, BUTTON_CLOSE = GTK_RESPONSE_CLOSE }
Public Member Functions
	XAP_UnixDialog_Insert_Symbol (XAP_DialogFactory *pDlgFactory, XAP_Dialog_Id id)
virtual	~XAP_UnixDialog_Insert_Symbol (void)
virtual void	runModal (XAP_Frame *pFrame)
virtual void	runModeless (XAP_Frame *pFrame)
virtual void	notifyActiveFrame (XAP_Frame *pFrame)
virtual void	notifyCloseFrame (XAP_Frame *)
virtual void	destroy (void)
virtual void	activate (void)
void	event_Insert (void)
void	event_WindowDelete (void)
void	New_Font (void)
void	New_Row (void)
void	Scroll_Event (int direction)
void	setSymbolMap_size (UT_uint32 width, UT_uint32 height)
void	SymbolMap_exposed (void)
void	Symbolarea_exposed (void)
void	SymbolMap_clicked (GdkEvent *event)
void	CurrentSymbol_clicked (GdkEvent *event)
gboolean	Key_Pressed (GdkEventKey *e)
Static Public Member Functions
static XAP_Dialog *	static_constructor (XAP_DialogFactory *, XAP_Dialog_Id id)
Private Member Functions
GtkWidget *	_constructWindow (void)
void	_getGlistFonts (std::list< std::string > &glFonts)
GtkWidget *	_createComboboxWithFonts (void)
void	_connectSignals (void)
void	_setScrolledWindow (void)
GtkWidget *	_previewNew (int w, int h)
Private Attributes
GtkWidget *	m_windowMain
GtkWidget *	m_SymbolMap
GtkWidget *	m_fontcombo
GtkAdjustment *	m_vadjust
std::list< std::string >	m_InsertS_Font_list
GtkWidget *	m_areaCurrentSym
GR_CairoGraphics *	m_unixGraphics
GR_CairoGraphics *	m_unixarea
UT_uint32	m_ix
UT_uint32	m_iy

Member Enumeration Documentation

enum XAP_UnixDialog_Insert_Symbol::ResponseId

Enumerator:

BUTTON_INSERT
BUTTON_CLOSE

Constructor & Destructor Documentation

XAP_UnixDialog_Insert_Symbol::XAP_UnixDialog_Insert_Symbol	(	XAP_DialogFactory *	pDlgFactory,
		XAP_Dialog_Id	id
	)

References m_areaCurrentSym, m_ix, m_iy, m_unixarea, and m_unixGraphics.

Referenced by static_constructor().

XAP_UnixDialog_Insert_Symbol::~XAP_UnixDialog_Insert_Symbol ( void ) [virtual]

References DELETEP, m_unixarea, and m_unixGraphics.

Member Function Documentation

void XAP_UnixDialog_Insert_Symbol::_connectSignals ( void ) [private]

References m_areaCurrentSym, m_fontcombo, m_SymbolMap, m_vadjust, m_windowMain, s_CurrentSymbol_clicked(), s_delete_clicked(), s_destroy_clicked(), s_dlg_response(), s_keypressed(), s_new_font(), s_new_row(), s_scroll_event(), s_size_request(), s_sym_SymbolMap_draw(), s_Symbolarea_draw(), and s_SymbolMap_clicked().

Referenced by _constructWindow().

GtkWidget * XAP_UnixDialog_Insert_Symbol::_constructWindow ( void ) [private]

References _connectSignals(), _createComboboxWithFonts(), _previewNew(), abiAddButton(), abiDialogNew(), BUTTON_CLOSE, BUTTON_INSERT, XAP_Dialog_Insert_Symbol::ConstructWindowName(), XAP_App::getStringSet(), XAP_StringSet::getValueUTF8(), m_areaCurrentSym, m_fontcombo, XAP_Dialog::m_pApp, m_SymbolMap, m_vadjust, m_windowMain, XAP_Dialog_Insert_Symbol::m_WindowName, and s.

Referenced by runModeless().

GtkWidget * XAP_UnixDialog_Insert_Symbol::_createComboboxWithFonts ( void ) [private]

References _getGlistFonts(), and m_InsertS_Font_list.

Referenced by _constructWindow().

void XAP_UnixDialog_Insert_Symbol::_getGlistFonts ( std::list< std::string > & glFonts ) [private]

References GR_CairoGraphics::getAllFontNames(), XAP_Dialog::getApp(), and XAP_App::getGraphicsFactory().

Referenced by _createComboboxWithFonts().

GtkWidget * XAP_UnixDialog_Insert_Symbol::_previewNew	(	int	w,
		int	h
	)			`[private]`

Referenced by _constructWindow().

void XAP_UnixDialog_Insert_Symbol::_setScrolledWindow ( void ) [private]

References XAP_Dialog_Insert_Symbol::_getCurrentSymbolMap(), XAP_Draw_Symbol::getSymbolRows(), m_vadjust, rows, and UT_return_if_fail.

Referenced by New_Font(), and runModeless().

void XAP_UnixDialog_Insert_Symbol::activate ( void ) [virtual]

Implements XAP_Dialog_Insert_Symbol.

References XAP_Dialog_Insert_Symbol::ConstructWindowName(), m_windowMain, XAP_Dialog_Insert_Symbol::m_WindowName, and UT_return_if_fail.

void XAP_UnixDialog_Insert_Symbol::CurrentSymbol_clicked ( GdkEvent * event )

References event_Insert().

Referenced by s_CurrentSymbol_clicked().

void XAP_UnixDialog_Insert_Symbol::destroy ( void ) [virtual]

Implements XAP_Dialog_Insert_Symbol.

References m_InsertS_Font_list, m_windowMain, XAP_Dialog_Modeless::modeless_cleanup(), and UT_DEBUGMSG.

void XAP_UnixDialog_Insert_Symbol::event_Insert ( void )

References XAP_Dialog_Insert_Symbol::_onInsertButton(), m_CurrentSymbol, and XAP_Dialog_Insert_Symbol::m_Inserted_Symbol.

Referenced by CurrentSymbol_clicked(), Key_Pressed(), s_dlg_response(), and SymbolMap_clicked().

void XAP_UnixDialog_Insert_Symbol::event_WindowDelete ( void )

References XAP_Dialog_Insert_Symbol::_getCurrentSymbolMap(), XAP_Draw_Symbol::getSelectedFont(), XAP_Dialog_Insert_Symbol::m_answer, m_InsertS_Font_list, m_windowMain, XAP_Dialog_Modeless::modeless_cleanup(), and s_Prev_Font.

Referenced by s_destroy_clicked().

gboolean XAP_UnixDialog_Insert_Symbol::Key_Pressed ( GdkEventKey * e )

References XAP_Dialog_Insert_Symbol::_getCurrentSymbolMap(), XAP_Draw_Symbol::calcSymbolFromCoords(), XAP_Draw_Symbol::drawarea(), event_Insert(), m_CurrentSymbol, m_ix, m_iy, m_PreviousSymbol, m_windowMain, Scroll_Event(), UT_DEBUGMSG, and UT_return_val_if_fail.

Referenced by s_keypressed().

void XAP_UnixDialog_Insert_Symbol::New_Font ( void )

References XAP_Dialog_Insert_Symbol::_getCurrentSymbolMap(), _setScrolledWindow(), XAP_Draw_Symbol::calcSymbol(), XAP_Draw_Symbol::calculatePosition(), XAP_Draw_Symbol::draw(), XAP_Draw_Symbol::drawarea(), gchar, m_CurrentSymbol, m_fontcombo, m_ix, m_iy, m_PreviousSymbol, XAP_Draw_Symbol::setSelectedFont(), and UT_return_if_fail.

Referenced by s_new_font().

void XAP_UnixDialog_Insert_Symbol::New_Row ( void )

References XAP_Dialog_Insert_Symbol::_getCurrentSymbolMap(), m_vadjust, XAP_Draw_Symbol::setRow(), and UT_return_if_fail.

Referenced by s_new_row().

void XAP_UnixDialog_Insert_Symbol::notifyActiveFrame ( XAP_Frame * pFrame ) [virtual]

Implements XAP_Dialog_Insert_Symbol.

References XAP_Dialog_Insert_Symbol::ConstructWindowName(), m_windowMain, XAP_Dialog_Insert_Symbol::m_WindowName, and UT_ASSERT.

virtual void XAP_UnixDialog_Insert_Symbol::notifyCloseFrame ( XAP_Frame * ) [inline, virtual]

Reimplemented from XAP_Dialog_Modeless.

void XAP_UnixDialog_Insert_Symbol::runModal ( XAP_Frame * pFrame ) [virtual]

Implements XAP_Dialog_Insert_Symbol.

void XAP_UnixDialog_Insert_Symbol::runModeless ( XAP_Frame * pFrame ) [virtual]

void XAP_UnixDialog_Insert_Symbol::Scroll_Event ( int direction )

References XAP_Dialog_Insert_Symbol::_getCurrentSymbolMap(), m_vadjust, and UT_return_if_fail.

Referenced by Key_Pressed(), and s_scroll_event().

void XAP_UnixDialog_Insert_Symbol::setSymbolMap_size	(	UT_uint32	width,
		UT_uint32	height
	)

References XAP_Dialog_Insert_Symbol::_getCurrentSymbolMap(), m_SymbolMap, m_windowMain, XAP_Draw_Symbol::setFontString(), XAP_Draw_Symbol::setWindowSize(), and UT_return_if_fail.

Referenced by s_size_request().

XAP_Dialog * XAP_UnixDialog_Insert_Symbol::static_constructor	(	XAP_DialogFactory *	pFactory,
		XAP_Dialog_Id	id
	)			`[static]`

References XAP_UnixDialog_Insert_Symbol().

void XAP_UnixDialog_Insert_Symbol::Symbolarea_exposed ( void )

References XAP_Dialog_Insert_Symbol::_getCurrentSymbolMap(), XAP_Draw_Symbol::drawarea(), m_CurrentSymbol, m_PreviousSymbol, and UT_return_if_fail.

Referenced by s_Symbolarea_draw().

void XAP_UnixDialog_Insert_Symbol::SymbolMap_clicked ( GdkEvent * event )

References XAP_Dialog_Insert_Symbol::_getCurrentSymbolMap(), XAP_Draw_Symbol::calcSymbol(), XAP_Draw_Symbol::calculatePosition(), XAP_Draw_Symbol::drawarea(), event_Insert(), m_CurrentSymbol, m_ix, m_iy, m_PreviousSymbol, and UT_return_if_fail.

Referenced by s_SymbolMap_clicked().

void XAP_UnixDialog_Insert_Symbol::SymbolMap_exposed ( void )

References XAP_Dialog_Insert_Symbol::_getCurrentSymbolMap(), XAP_Draw_Symbol::draw(), XAP_Draw_Symbol::drawarea(), m_CurrentSymbol, m_PreviousSymbol, UT_DEBUGMSG, and UT_return_if_fail.

Referenced by s_sym_SymbolMap_draw().

Member Data Documentation

GtkWidget* XAP_UnixDialog_Insert_Symbol::m_areaCurrentSym [private]

Referenced by _connectSignals(), _constructWindow(), runModeless(), and XAP_UnixDialog_Insert_Symbol().

GtkWidget* XAP_UnixDialog_Insert_Symbol::m_fontcombo [private]

Referenced by _connectSignals(), _constructWindow(), New_Font(), and runModeless().

std::list<std::string> XAP_UnixDialog_Insert_Symbol::m_InsertS_Font_list [private]

Referenced by _createComboboxWithFonts(), destroy(), and event_WindowDelete().

UT_uint32 XAP_UnixDialog_Insert_Symbol::m_ix [private]

Referenced by Key_Pressed(), New_Font(), runModeless(), SymbolMap_clicked(), and XAP_UnixDialog_Insert_Symbol().

UT_uint32 XAP_UnixDialog_Insert_Symbol::m_iy [private]

Referenced by Key_Pressed(), New_Font(), runModeless(), SymbolMap_clicked(), and XAP_UnixDialog_Insert_Symbol().

GtkWidget* XAP_UnixDialog_Insert_Symbol::m_SymbolMap [private]

Referenced by _connectSignals(), _constructWindow(), runModeless(), and setSymbolMap_size().

GR_CairoGraphics* XAP_UnixDialog_Insert_Symbol::m_unixarea [private]

Referenced by runModeless(), XAP_UnixDialog_Insert_Symbol(), and ~XAP_UnixDialog_Insert_Symbol().

GR_CairoGraphics* XAP_UnixDialog_Insert_Symbol::m_unixGraphics [private]

Referenced by runModeless(), XAP_UnixDialog_Insert_Symbol(), and ~XAP_UnixDialog_Insert_Symbol().

GtkAdjustment* XAP_UnixDialog_Insert_Symbol::m_vadjust [private]

Referenced by _connectSignals(), _constructWindow(), _setScrolledWindow(), New_Row(), and Scroll_Event().

GtkWidget* XAP_UnixDialog_Insert_Symbol::m_windowMain [private]

Referenced by _connectSignals(), _constructWindow(), activate(), destroy(), event_WindowDelete(), Key_Pressed(), notifyActiveFrame(), and setSymbolMap_size().

The documentation for this class was generated from the following files:
