#include <ie_exp_Psion.h>

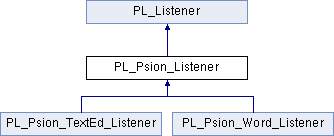

Inheritance diagram for PL_Psion_Listener:

Public Member Functions
	PL_Psion_Listener (PD_Document *pDocument)
virtual	~PL_Psion_Listener (void)
virtual bool	populate (fl_ContainerLayout sfh, const PX_ChangeRecord pcr)
virtual bool	populateStrux (pf_Frag_Strux sdh, const PX_ChangeRecord pcr, fl_ContainerLayout **psfh)
bool	startDocument (void)
bool	finishDocument (void)
virtual psiconv_file	createPsionFile (void)=0
virtual bool	change (fl_ContainerLayout , const PX_ChangeRecord )
virtual bool	insertStrux (fl_ContainerLayout , const PX_ChangeRecord , pf_Frag_Strux , PL_ListenerId, void()(pf_Frag_Strux sdhNew, PL_ListenerId lid, fl_ContainerLayout sfhNew))
virtual bool	signal (UT_uint32)
Protected Attributes
PD_Document *	m_pDocument
psiconv_text_and_layout	m_paragraphs
psiconv_word_styles_section	m_styles
psiconv_page_header	m_header
psiconv_page_header	m_footer
Private Types
enum	sectionType { section_none, section_header, section_footer, section_main }
Private Member Functions
bool	_writeText (const UT_UCSChar *p, UT_uint32 inlength, UT_uint32 &outlength)
bool	_openParagraph (const PT_AttrPropIndex api)
bool	_closeParagraph (void)
bool	_addInLine (const PT_AttrPropIndex api, UT_uint32 textlen)
bool	_processStyles (void)
bool	_setStyleLayout (PD_Style *style, psiconv_paragraph_layout para_layout, psiconv_character_layout char_layout)
bool	_insertImage (const PT_AttrPropIndex api)
Private Attributes
bool	m_inParagraph
sectionType	m_sectionType
psiconv_list	m_currentParagraphText
psiconv_paragraph_layout	m_currentParagraphPLayout
psiconv_character_layout	m_currentParagraphCLayout
psiconv_in_line_layouts	m_currentParagraphInLines
psiconv_s16	m_currentParagraphStyle

Detailed Description

Abstract listener class for Psion files.

The actual Word and TextEd listeners are derived from this class. Listener classes are used to traverse the AbiWord document, using the defined callbacks whenever something interesting is found. This specific class builds a psiconv representation of the AbiWord document internally. The abstract createPsionFile method will need to be defined to return this psiconv document, currently in Word or TextEd form.

Member Enumeration Documentation

enum PL_Psion_Listener::sectionType [private]

Enumerator:

section_none
section_header
section_footer
section_main

Constructor & Destructor Documentation

PL_Psion_Listener::PL_Psion_Listener ( PD_Document * pDocument )

Constructor

The listener uses several psiconv_file fragments while building paragraphs (and perhaps other things). We can't allocate them here, because we can't fail in a constructor. At all places, we use NULL to indicate an unallocated structure.

PL_Psion_Listener::~PL_Psion_Listener ( void ) [virtual]

Destructor

Deallocate those psiconv_file fragments that are currently allocated. NULL is used to indicate an unallocated structure.

References m_currentParagraphCLayout, m_currentParagraphInLines, m_currentParagraphPLayout, m_currentParagraphText, m_footer, m_header, and m_paragraphs.

Member Function Documentation

bool PL_Psion_Listener::_addInLine	(	const PT_AttrPropIndex	api,
		UT_uint32	textlen
	)			`[private]`

Parse the current in-line formatting

References PD_Document::getAttrProp(), m_currentParagraphCLayout, m_currentParagraphInLines, m_inParagraph, m_pDocument, updateCharacterLayout(), UT_ASSERT, and UT_DEBUGMSG.

Referenced by populate().

bool PL_Psion_Listener::_closeParagraph ( void ) [private]

Close the paragraph

The current paragraph stuff is added to the paragraph list. It is safe to call this function if no paragraph is opened.

References m_currentParagraphCLayout, m_currentParagraphInLines, m_currentParagraphPLayout, m_currentParagraphStyle, m_currentParagraphText, m_footer, m_header, m_inParagraph, m_paragraphs, m_sectionType, section_footer, section_header, section_main, section_none, and UT_DEBUGMSG.

Referenced by _openParagraph(), finishDocument(), and populateStrux().

bool PL_Psion_Listener::_insertImage ( const PT_AttrPropIndex api ) [private]

Handle images

Images can be in several flavours in the AbiWord source. Here, we just handle PNG ones.

References gchar, PP_AttrProp::getAttribute(), PD_Document::getAttrProp(), PD_Document::getDataItemDataByName(), _bb::iCurPos, m_currentParagraphCLayout, m_currentParagraphInLines, m_currentParagraphText, m_pDocument, _bb::pBB, read_png_data(), UT_DEBUGMSG, and utf8_to_ucs2().

Referenced by populate().

bool PL_Psion_Listener::_openParagraph ( const PT_AttrPropIndex api ) [private]

Open a new paragraph, and set paragraph-level layout.

References _closeParagraph(), gchar, PP_AttrProp::getAttribute(), PD_Document::getAttrProp(), m_currentParagraphCLayout, m_currentParagraphInLines, m_currentParagraphPLayout, m_currentParagraphStyle, m_currentParagraphText, m_inParagraph, m_pDocument, m_styles, style, updateCharacterLayout(), updateParagraphLayout(), UT_DEBUGMSG, and utf8_to_ucs2().

Referenced by populateStrux().

bool PL_Psion_Listener::_processStyles ( void ) [private]

Translate all styles.

References _setStyleLayout(), PD_Document::getAllUsedStyles(), UT_GenericVector< T >::getItemCount(), PD_Style::getName(), UT_GenericVector< T >::getNthItem(), PD_Style::isCharStyle(), m_pDocument, m_styles, style, UT_DEBUGMSG, and utf8_to_ucs2().

Referenced by startDocument().

bool PL_Psion_Listener::_setStyleLayout	(	PD_Style *	style,
		psiconv_paragraph_layout	para_layout,
		psiconv_character_layout	char_layout
	)			`[private]`

Determine the layout of this style, considering the styles it is based on.

A paragraph style is associated with a certain layout. That layout is partly defined in the style itself, and partly because it inherits layout from its parent style. This method gathers all that information, translates it to Psiconv format and puts it in para_layout and char_layout. Note that we call ourselves recursively; if we ever encounter a situation in which is style is based on itself, or is in some other circular relationship, we will crash and burn. So don't do that :-)

References PD_Document::getAttrProp(), PD_Style::getBasedOn(), PD_Style::getIndexAP(), m_pDocument, updateCharacterLayout(), and updateParagraphLayout().

Referenced by _processStyles().

bool PL_Psion_Listener::_writeText	(	const UT_UCSChar *	p,
		UT_uint32	inLength,
		UT_uint32 &	outLength
	)			`[private]`

Add some AbiWord document text to the current paragraph

Add some text to the current paragraph. Returns the length of the written text in outLength; this may be more or less than inLength, because some input characters may need to be represented by more than one output character, and because we may ignore some input characters.

References UT_UTF8Stringbuf::appendUCS4(), UT_UTF8Stringbuf::data(), m_currentParagraphText, UCS_ABI_OBJECT, UCS_CR, UCS_EM_DASH, UCS_EM_SPACE, UCS_EN_DASH, UCS_EN_SPACE, UCS_FF, UCS_LF, UCS_TAB, and UT_DEBUGMSG.

Referenced by populate().

virtual bool PL_Psion_Listener::change	(	fl_ContainerLayout *	,
		const PX_ChangeRecord *
	)			`[inline, virtual]`

Implements PL_Listener.

References UT_ASSERT, and UT_SHOULD_NOT_HAPPEN.

virtual psiconv_file PL_Psion_Listener::createPsionFile ( void ) [pure virtual]

Implemented in PL_Psion_Word_Listener, and PL_Psion_TextEd_Listener.

Referenced by IE_Exp_Psion::_writeDocument().

bool PL_Psion_Listener::finishDocument ( void )

Finish the traversing of the document by the Listener.

Call this after calling tellListener to traverse the document. Closes remaining paragraphs and sections.

References _closeParagraph().

Referenced by IE_Exp_Psion::_writeDocument().

virtual bool PL_Psion_Listener::insertStrux	(	fl_ContainerLayout *	,
		const PX_ChangeRecord *	,
		pf_Frag_Strux *	,
		PL_ListenerId	,
		void()(pf_Frag_Strux sdhNew,PL_ListenerId lid,fl_ContainerLayout *sfhNew)
	)			`[inline, virtual]`

Implements PL_Listener.

References UT_ASSERT, and UT_SHOULD_NOT_HAPPEN.

bool PL_Psion_Listener::populate	(	fl_ContainerLayout *	sfh,
		const PX_ChangeRecord *	pcr
	)			`[virtual]`

Standard listener callback for in-block data

This method is called when a span, object or format mark is found in the document while traversing it.

Implements PL_Listener.

References _addInLine(), _insertImage(), _writeText(), PX_ChangeRecord_Span::getBufIndex(), PX_ChangeRecord_Object::getField(), fd_Field::getFieldType(), PX_ChangeRecord::getIndexAP(), PX_ChangeRecord_Span::getLength(), PX_ChangeRecord_Object::getObjectType(), PD_Document::getPointer(), PX_ChangeRecord::getType(), m_currentParagraphPLayout, m_inParagraph, m_pDocument, PTO_Bookmark, PTO_Field, PTO_Hyperlink, PTO_Image, PX_ChangeRecord::PXT_InsertFmtMark, PX_ChangeRecord::PXT_InsertObject, PX_ChangeRecord::PXT_InsertSpan, UT_ASSERT, and UT_DEBUGMSG.

bool PL_Psion_Listener::populateStrux	(	pf_Frag_Strux *	sdh,
		const PX_ChangeRecord *	pcr,
		fl_ContainerLayout **	psfh
	)			`[virtual]`

Standard listener callback for block and section data

This method is called whenever a block (paragraph) or section is found in the document while traversing it.

Implements PL_Listener.

References _closeParagraph(), _openParagraph(), gchar, PP_AttrProp::getAttribute(), PD_Document::getAttrProp(), PX_ChangeRecord::getIndexAP(), PX_ChangeRecord::getType(), m_pDocument, m_sectionType, PTX_Block, PTX_EndCell, PTX_EndEndnote, PTX_EndFootnote, PTX_EndFrame, PTX_EndMarginnote, PTX_EndTable, PTX_Section, PTX_SectionCell, PTX_SectionFootnote, PTX_SectionFrame, PTX_SectionHdrFtr, PTX_SectionMarginnote, PTX_SectionTable, UT_ASSERT, UT_ASSERT_NOT_REACHED, and UT_DEBUGMSG.

virtual bool PL_Psion_Listener::signal ( UT_uint32 ) [inline, virtual]

Implements PL_Listener.

References UT_ASSERT, and UT_SHOULD_NOT_HAPPEN.

bool PL_Psion_Listener::startDocument ( void )

Initialize a new Psion Listener.

Call this right after the constructor. We can't call it from the constructor, because our constructor may not fail. We initialize all kinds of private variables. Some juggling is done with NULL values to make sure everything can be safely deallocated at any time by our destructor. We also parse all styles here. This is needed further on, and listeners do not traverse styles.

References _processStyles(), m_currentParagraphText, m_footer, m_header, and m_paragraphs.

Referenced by IE_Exp_Psion::_writeDocument().
