#include <ap_UnixDialog_Goto.h>

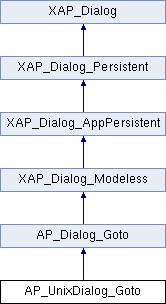

Inheritance diagram for AP_UnixDialog_Goto:

Public Member Functions
	AP_UnixDialog_Goto (XAP_DialogFactory *pDlgFactory, XAP_Dialog_Id id)
virtual	~AP_UnixDialog_Goto (void)
virtual void	runModeless (XAP_Frame *pFrame)
virtual void	notifyActiveFrame (XAP_Frame *pFrame)
virtual void	activate (void)
virtual void	destroy (void)
void	onPageChanged (void)
void	onLineChanged (void)
void	onBookmarkDblClicked (void)
void	onXMLIDDblClicked (void)
void	onAnnoDblClicked (void)
void	onJumpClicked (void)
void	onPrevClicked (void)
void	onNextClicked (void)
void	updateCache (AP_JumpTarget target)
void	updateDocCount (void)
void	updatePosition (void)
const GtkWidget *	getWindow (void)
Static Public Member Functions
static XAP_Dialog *	static_constructor (XAP_DialogFactory *, XAP_Dialog_Id id)
Protected Member Functions
void	_constructWindow (XAP_Frame *pFrame)
void	_updateWindow (void)
Private Types
enum	{ COLUMN_NAME = 0, NUM_COLUMNS }
enum	{ COLUMN_ANNO_ID = 0, COLUMN_ANNO_TITLE, COLUMN_ANNO_AUTHOR, NUM_ANNO_COLUMNS }
Private Member Functions
void	_selectPrevBookmark (void)
	Try to select the bookmark before the current one.
void	_selectNextBookmark (void)
	Try to select the bookmark after the current one.
std::string	_getSelectedBookmarkLabel ()
std::string	_getSelectedXMLIDLabel ()
std::string	_getSelectedAnnotationLabel ()
void	setupXMLIDList (GtkWidget *w)
void	updateXMLIDList (GtkWidget *w)
void	setupAnnotationList (GtkWidget *w)
void	updateAnnotationList (GtkWidget *w)
Private Attributes
GtkWidget *	m_wDialog
GtkWidget *	m_nbNotebook
GtkWidget *	m_lbPage
GtkWidget *	m_lbLine
GtkWidget *	m_lbBookmarks
GtkWidget *	m_lbXMLids
GtkWidget *	m_lbAnnotations
GtkWidget *	m_sbPage
GtkWidget *	m_sbLine
GtkWidget *	m_lvBookmarks
GtkWidget *	m_btJump
GtkWidget *	m_btPrev
GtkWidget *	m_btNext
GtkWidget *	m_lvXMLIDs
GtkWidget *	m_lvAnno
GtkWidget *	m_btClose
guint	m_iPageConnect
guint	m_iLineConnect
AP_JumpTarget	m_JumpTarget
FV_DocCount	m_DocCount

Member Enumeration Documentation

anonymous enum [private]

Enumerator:

COLUMN_NAME
NUM_COLUMNS

anonymous enum [private]

Enumerator:

COLUMN_ANNO_ID
COLUMN_ANNO_TITLE
COLUMN_ANNO_AUTHOR
NUM_ANNO_COLUMNS

Constructor & Destructor Documentation

AP_UnixDialog_Goto::AP_UnixDialog_Goto	(	XAP_DialogFactory *	pDlgFactory,
		XAP_Dialog_Id	id
	)

Ctor.

Referenced by static_constructor().

AP_UnixDialog_Goto::~AP_UnixDialog_Goto ( void ) [virtual]

Dtor.

References UT_DEBUGMSG.

Member Function Documentation

void AP_UnixDialog_Goto::_constructWindow ( XAP_Frame * pFrame ) [protected]

Build dialog.

Referenced by runModeless().

std::string AP_UnixDialog_Goto::_getSelectedAnnotationLabel ( ) [private]

References COLUMN_ANNO_ID, getSelectedUInt(), m_lvAnno, tostr(), and UT_DEBUGMSG.

Referenced by onJumpClicked().

std::string AP_UnixDialog_Goto::_getSelectedBookmarkLabel ( ) [private]

Get the label of the currently selected bookmark in the list.

References COLUMN_NAME, getSelectedText(), m_lvBookmarks, and UT_DEBUGMSG.

Referenced by onJumpClicked().

std::string AP_UnixDialog_Goto::_getSelectedXMLIDLabel ( ) [private]

References COLUMN_NAME, getSelectedText(), m_lvXMLIDs, and UT_DEBUGMSG.

Referenced by onJumpClicked().

void AP_UnixDialog_Goto::_selectNextBookmark ( void ) [private]

Try to select the bookmark after the current one.

If none is selected the first in the list is picked. Wraps around.

References m_lvBookmarks, selectNext(), and UT_DEBUGMSG.

Referenced by onNextClicked().

void AP_UnixDialog_Goto::_selectPrevBookmark ( void ) [private]

Try to select the bookmark before the current one.

If none is selected the last in the list is picked. Wraps around.

References m_lvBookmarks, selectPrev(), and UT_DEBUGMSG.

Referenced by onPrevClicked().

void AP_UnixDialog_Goto::_updateWindow ( void ) [protected]

Update dialog's data.

References COLUMN_NAME, AP_Dialog_Goto::ConstructWindowName(), AP_Dialog_Goto::getExistingBookmarksCount(), AP_Dialog_Goto::getNthExistingBookmark(), m_lvAnno, m_lvBookmarks, m_lvXMLIDs, m_wDialog, AP_Dialog_Goto::m_WindowName, updateAnnotationList(), updateDocCount(), updatePosition(), updateXMLIDList(), and UT_DEBUGMSG.

Referenced by activate(), notifyActiveFrame(), and runModeless().

void AP_UnixDialog_Goto::activate ( void ) [virtual]

Implements XAP_Dialog_Modeless.

References _updateWindow(), m_wDialog, UT_ASSERT, and UT_DEBUGMSG.

void AP_UnixDialog_Goto::destroy ( void ) [virtual]

Implements XAP_Dialog_Modeless.

References m_wDialog, XAP_Dialog_Modeless::modeless_cleanup(), and UT_DEBUGMSG.

Referenced by AP_UnixDialog_Goto__onDeleteWindow(), and AP_UnixDialog_Goto__onDialogResponse().

const GtkWidget* AP_UnixDialog_Goto::getWindow ( void ) [inline]

References m_wDialog.

Referenced by AP_UnixDialog_Goto__onDeleteWindow().

void AP_UnixDialog_Goto::notifyActiveFrame ( XAP_Frame * pFrame ) [virtual]

Reimplemented from XAP_Dialog_Modeless.

References _updateWindow(), m_JumpTarget, m_wDialog, UT_ASSERT, and UT_DEBUGMSG.

void AP_UnixDialog_Goto::onAnnoDblClicked ( void )

References m_JumpTarget, and onJumpClicked().

Referenced by AP_UnixDialog_Goto__onAnnoDblClicked().

void AP_UnixDialog_Goto::onBookmarkDblClicked ( void )

Event handler for treeview "bookmarks".

References m_JumpTarget, and onJumpClicked().

Referenced by AP_UnixDialog_Goto__onBookmarkDblClicked().

void AP_UnixDialog_Goto::onJumpClicked ( void )

Event handler for button "jump".

References _getSelectedAnnotationLabel(), _getSelectedBookmarkLabel(), _getSelectedXMLIDLabel(), AP_JUMPTARGET_ANNOTATION, AP_JUMPTARGET_BOOKMARK, AP_JUMPTARGET_LINE, AP_JUMPTARGET_PAGE, AP_JUMPTARGET_XMLID, m_iLineConnect, m_JumpTarget, m_sbLine, m_sbPage, AP_Dialog_Goto::performGoto(), text, tostr(), and UT_DEBUGMSG.

Referenced by AP_UnixDialog_Goto__onJumpClicked(), onAnnoDblClicked(), onBookmarkDblClicked(), onLineChanged(), onNextClicked(), onPageChanged(), onPrevClicked(), and onXMLIDDblClicked().

void AP_UnixDialog_Goto::onLineChanged ( void )

Event handler for spinbutton "line".

References line(), FV_DocCount::line, m_DocCount, m_JumpTarget, m_sbLine, onJumpClicked(), and UT_DEBUGMSG.

Referenced by AP_UnixDialog_Goto__onLineChanged().

void AP_UnixDialog_Goto::onNextClicked ( void )

Event handler for button "next".

References _selectNextBookmark(), AP_JUMPTARGET_ANNOTATION, AP_JUMPTARGET_BOOKMARK, AP_JUMPTARGET_LINE, AP_JUMPTARGET_PAGE, AP_JUMPTARGET_XMLID, m_JumpTarget, m_lvAnno, m_lvXMLIDs, m_sbLine, m_sbPage, onJumpClicked(), selectNext(), and UT_DEBUGMSG.

Referenced by AP_UnixDialog_Goto__onNextClicked().

void AP_UnixDialog_Goto::onPageChanged ( void )

Event handler for spinbutton "page".

References m_DocCount, m_JumpTarget, m_sbPage, onJumpClicked(), FV_DocCount::page, and UT_DEBUGMSG.

Referenced by AP_UnixDialog_Goto__onPageChanged().

void AP_UnixDialog_Goto::onPrevClicked ( void )

Event handler for button "prev".

References _selectPrevBookmark(), AP_JUMPTARGET_ANNOTATION, AP_JUMPTARGET_BOOKMARK, AP_JUMPTARGET_LINE, AP_JUMPTARGET_PAGE, AP_JUMPTARGET_XMLID, FV_DocCount::line, m_DocCount, m_JumpTarget, m_lvAnno, m_lvXMLIDs, m_sbLine, m_sbPage, onJumpClicked(), FV_DocCount::page, selectPrev(), and UT_DEBUGMSG.

Referenced by AP_UnixDialog_Goto__onPrevClicked().

void AP_UnixDialog_Goto::onXMLIDDblClicked ( void )

References m_JumpTarget, and onJumpClicked().

Referenced by AP_UnixDialog_Goto__onXMLIDDblClicked().

void AP_UnixDialog_Goto::runModeless ( XAP_Frame * pFrame ) [virtual]

Implements XAP_Dialog_Modeless.

References _constructWindow(), _updateWindow(), abiSetupModelessDialog(), m_wDialog, UT_ASSERT, and UT_DEBUGMSG.

void AP_UnixDialog_Goto::setupAnnotationList ( GtkWidget * w ) [private]

References AP_UnixDialog_Goto__onAnnoDblClicked(), AP_UnixDialog_Goto__onFocusAnno(), COLUMN_ANNO_ID, XAP_App::getStringSet(), XAP_StringSet::getValueUTF8(), id, XAP_Dialog::m_pApp, and NUM_ANNO_COLUMNS.

Referenced by _constructWindow().

void AP_UnixDialog_Goto::setupXMLIDList ( GtkWidget * w ) [private]

References AP_UnixDialog_Goto__onFocusXMLIDs(), AP_UnixDialog_Goto__onXMLIDDblClicked(), COLUMN_NAME, and NUM_COLUMNS.

Referenced by _constructWindow().

XAP_Dialog * AP_UnixDialog_Goto::static_constructor	(	XAP_DialogFactory *	pFactory,
		XAP_Dialog_Id	id
	)			`[static]`

Static ctor.

References AP_UnixDialog_Goto().

void AP_UnixDialog_Goto::updateAnnotationList ( GtkWidget * w ) [private]

References COLUMN_ANNO_ID, COLUMN_ANNO_TITLE, FV_View::countAnnotations(), FV_View::getAnnotationAuthor(), FV_View::getAnnotationTitle(), AP_Dialog_Goto::getView(), tostr(), and UT_DEBUGMSG.

Referenced by _updateWindow().

void AP_UnixDialog_Goto::updateCache ( AP_JumpTarget target )

Set jump target and update cached data like number of lines and pages.

See also:: ap_types.h

References m_JumpTarget, and updateDocCount().

Referenced by AP_UnixDialog_Goto__onFocusAnno(), AP_UnixDialog_Goto__onFocusBookmarks(), AP_UnixDialog_Goto__onFocusLine(), AP_UnixDialog_Goto__onFocusPage(), and AP_UnixDialog_Goto__onFocusXMLIDs().

void AP_UnixDialog_Goto::updateDocCount ( void )

Update cached data like number of lines and pages.

References FV_View::countWords(), AP_Dialog_Goto::getView(), FV_DocCount::line, m_DocCount, FV_DocCount::page, and UT_DEBUGMSG.

Referenced by _updateWindow(), and updateCache().

void AP_UnixDialog_Goto::updatePosition ( void )

References FV_View::getCurrentPageNumForStatusBar(), AP_Dialog_Goto::getView(), m_iLineConnect, m_iPageConnect, m_sbLine, and m_sbPage.

Referenced by _updateWindow(), and AP_UnixDialog_Goto__onSwitchPage().

void AP_UnixDialog_Goto::updateXMLIDList ( GtkWidget * w ) [private]

References COLUMN_NAME, AP_Dialog_Goto::getRDF(), and UT_DEBUGMSG.

Referenced by _updateWindow().

Member Data Documentation

GtkWidget* AP_UnixDialog_Goto::m_btClose [private]

Referenced by _constructWindow().

GtkWidget* AP_UnixDialog_Goto::m_btJump [private]

Referenced by _constructWindow().

GtkWidget* AP_UnixDialog_Goto::m_btNext [private]

Referenced by _constructWindow().

GtkWidget* AP_UnixDialog_Goto::m_btPrev [private]

Referenced by _constructWindow().

FV_DocCount AP_UnixDialog_Goto::m_DocCount [private]

Referenced by onLineChanged(), onPageChanged(), onPrevClicked(), and updateDocCount().

guint AP_UnixDialog_Goto::m_iLineConnect [private]

Referenced by _constructWindow(), onJumpClicked(), and updatePosition().

guint AP_UnixDialog_Goto::m_iPageConnect [private]

Referenced by _constructWindow(), and updatePosition().

AP_JumpTarget AP_UnixDialog_Goto::m_JumpTarget [private]

Referenced by notifyActiveFrame(), onAnnoDblClicked(), onBookmarkDblClicked(), onJumpClicked(), onLineChanged(), onNextClicked(), onPageChanged(), onPrevClicked(), onXMLIDDblClicked(), and updateCache().

GtkWidget* AP_UnixDialog_Goto::m_lbAnnotations [private]

Referenced by _constructWindow().

GtkWidget* AP_UnixDialog_Goto::m_lbBookmarks [private]

Referenced by _constructWindow().

GtkWidget* AP_UnixDialog_Goto::m_lbLine [private]

Referenced by _constructWindow().

GtkWidget* AP_UnixDialog_Goto::m_lbPage [private]

Referenced by _constructWindow().

GtkWidget* AP_UnixDialog_Goto::m_lbXMLids [private]

Referenced by _constructWindow().

GtkWidget* AP_UnixDialog_Goto::m_lvAnno [private]

Referenced by _constructWindow(), _getSelectedAnnotationLabel(), _updateWindow(), onNextClicked(), and onPrevClicked().

GtkWidget* AP_UnixDialog_Goto::m_lvBookmarks [private]

Referenced by _constructWindow(), _getSelectedBookmarkLabel(), _selectNextBookmark(), _selectPrevBookmark(), and _updateWindow().

GtkWidget* AP_UnixDialog_Goto::m_lvXMLIDs [private]

Referenced by _constructWindow(), _getSelectedXMLIDLabel(), _updateWindow(), onNextClicked(), and onPrevClicked().

GtkWidget* AP_UnixDialog_Goto::m_nbNotebook [private]

Referenced by _constructWindow().

GtkWidget* AP_UnixDialog_Goto::m_sbLine [private]

Referenced by _constructWindow(), onJumpClicked(), onLineChanged(), onNextClicked(), onPrevClicked(), and updatePosition().

GtkWidget* AP_UnixDialog_Goto::m_sbPage [private]

Referenced by _constructWindow(), onJumpClicked(), onNextClicked(), onPageChanged(), onPrevClicked(), and updatePosition().

GtkWidget* AP_UnixDialog_Goto::m_wDialog [private]

Referenced by _constructWindow(), _updateWindow(), activate(), destroy(), getWindow(), notifyActiveFrame(), and runModeless().

The documentation for this class was generated from the following files:
