Public Types | Public Member Functions | Static Public Member Functions | Protected Member Functions | Protected Attributes | Private Attributes

AP_Dialog_Tab Class Reference

#include <ap_Dialog_Tab.h>

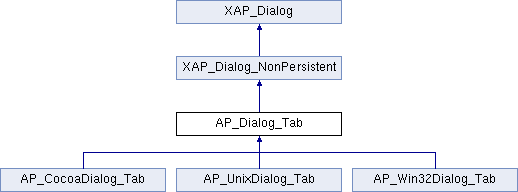

Inheritance diagram for AP_Dialog_Tab:
XAP_Dialog_NonPersistent XAP_Dialog AP_CocoaDialog_Tab AP_UnixDialog_Tab AP_Win32Dialog_Tab

List of all members.

Public Types

enum  tAnswer { a_OK, a_CANCEL }
enum  tControl {
  id_EDIT_TAB = 0, id_LIST_TAB, id_SPIN_DEFAULT_TAB_STOP, id_ALIGN_LEFT,
  id_ALIGN_CENTER, id_ALIGN_RIGHT, id_ALIGN_DECIMAL, id_ALIGN_BAR,
  id_LEADER_NONE, id_LEADER_DOT, id_LEADER_DASH, id_LEADER_UNDERLINE,
  id_BUTTON_SET, id_BUTTON_CLEAR, id_BUTTON_CLEAR_ALL, id_BUTTON_OK,
  id_BUTTON_CANCEL, id_last
}

Public Member Functions

 AP_Dialog_Tab (XAP_DialogFactory *pDlgFactory, XAP_Dialog_Id id)
virtual ~AP_Dialog_Tab (void)
virtual void runModal (XAP_Frame *pFrame)=0
AP_Dialog_Tab::tAnswer getAnswer (void) const
void clearList ()
void setSaveCallback (TabSaveCallBack, void *closure)

Static Public Member Functions

static unsigned char AlignmentToChar (eTabType a)
static eTabType CharToAlignment (unsigned char ch)

Protected Member Functions

virtual void _controlEnable (tControl id, bool value)=0
void _initEnableControls ()
void _populateWindowData (void)
void _storeWindowData (void)
bool buildTab (UT_String &buffer)
UT_Dimension _getDimension ()
char * _getTabDimensionString (UT_sint32 tabIndex)
char * _getTabString (fl_TabStop *pTabInfo)
void _deleteTabFromTabString (fl_TabStop *pTabInfo)
void _doSpin (tControl id, UT_sint32 amount)
 SET_GATHER (Alignment, eTabType)
 SET_GATHER (Leader, eTabLeader)
 SET_GATHER (DefaultTabStop, const gchar *)
virtual void _setTabList (UT_uint32 count)=0
 SET_GATHER (SelectTab, UT_sint32)
 SET_GATHER (TabEdit, const char *)
virtual void _clearList ()=0
void _event_TabChange (void)
void _event_TabSelected (UT_sint32 index)
void _event_AlignmentChange (void)
void _event_Set (void)
void _event_Update (void)
void _event_Clear (void)
void _event_ClearAll (void)
void _event_somethingChanged ()

Protected Attributes

tAnswer m_answer
XAP_Frame * m_pFrame
UT_Dimension m_dim
std::string m_pszTabStops
UT_GenericVector< fl_TabStop * > m_tabInfo

Private Attributes

TabSaveCallBack m_pCallbackFn
void * m_closure
char buf [20]

Member Enumeration Documentation

enum AP_Dialog_Tab::tAnswer
Enumerator:
a_OK
a_CANCEL
enum AP_Dialog_Tab::tControl
Enumerator:
id_EDIT_TAB
id_LIST_TAB
id_SPIN_DEFAULT_TAB_STOP
id_ALIGN_LEFT
id_ALIGN_CENTER
id_ALIGN_RIGHT
id_ALIGN_DECIMAL
id_ALIGN_BAR
id_LEADER_NONE
id_LEADER_DOT
id_LEADER_DASH
id_LEADER_UNDERLINE
id_BUTTON_SET
id_BUTTON_CLEAR
id_BUTTON_CLEAR_ALL
id_BUTTON_OK
id_BUTTON_CANCEL
id_last

Constructor & Destructor Documentation

AP_Dialog_Tab::AP_Dialog_Tab ( XAP_DialogFactory *  pDlgFactory,
XAP_Dialog_Id  id
)
AP_Dialog_Tab::~AP_Dialog_Tab ( void   )  [virtual]

References m_tabInfo, and UT_VECTOR_PURGEALL.

Member Function Documentation

virtual void AP_Dialog_Tab::_clearList (  )  [protected, pure virtual]

Implemented in AP_CocoaDialog_Tab, and AP_UnixDialog_Tab.

Referenced by _event_ClearAll(), and clearList().

virtual void AP_Dialog_Tab::_controlEnable ( tControl  id,
bool  value
) [protected, pure virtual]

Implemented in AP_CocoaDialog_Tab, and AP_UnixDialog_Tab.

Referenced by _event_AlignmentChange(), _event_somethingChanged(), _event_TabChange(), and _initEnableControls().

void AP_Dialog_Tab::_deleteTabFromTabString ( fl_TabStop *  pTabInfo  )  [protected]

References fl_TabStop::getOffset(), and m_pszTabStops.

Referenced by _event_Clear(), _event_Set(), and _event_Update().

void AP_Dialog_Tab::_doSpin ( tControl  id,
UT_sint32  amount
) [protected]

References d, DIM_CM, DIM_IN, DIM_MM, DIM_PI, DIM_PT, gchar, id_SPIN_DEFAULT_TAB_STOP, m_dim, UT_ASSERT_HARMLESS, UT_convertDimensionless(), UT_convertInchesToDimension(), UT_convertToInches(), UT_DEBUGMSG, UT_determineDimension(), UT_formatDimensionString(), UT_return_if_fail, and UT_SHOULD_NOT_HAPPEN.

Referenced by AP_Win32Dialog_Tab::_onDeltaPos().

void AP_Dialog_Tab::_event_AlignmentChange ( void   )  [protected]

References _controlEnable(), and id_BUTTON_SET.

Referenced by AP_Win32Dialog_Tab::_onCommand(), AP_CocoaDialog_Tab::event_Alignment, and AP_UnixDialog_Tab::onAlignmentChanged().

void AP_Dialog_Tab::_event_Clear ( void   )  [protected]

References _deleteTabFromTabString(), _event_somethingChanged(), _event_TabSelected(), _setTabList(), buildTabStops(), UT_GenericVector< T >::getItemCount(), UT_GenericVector< T >::getNthItem(), m_pFrame, m_pszTabStops, m_tabInfo, UT_DEBUGMSG, and UT_return_if_fail.

Referenced by AP_Win32Dialog_Tab::_onCommand(), AP_CocoaDialog_Tab_Proxy::clearAction, and AP_UnixDialog_Tab::onDeleteTab().

void AP_Dialog_Tab::_event_ClearAll ( void   )  [protected]

References _clearList(), _event_somethingChanged(), buildTabStops(), m_pFrame, m_pszTabStops, m_tabInfo, UT_DEBUGMSG, and UT_return_if_fail.

Referenced by AP_Win32Dialog_Tab::_onCommand(), and AP_CocoaDialog_Tab_Proxy::clearAllAction.

void AP_Dialog_Tab::_event_Set ( void   )  [protected]

References _deleteTabFromTabString(), _event_somethingChanged(), _getTabDimensionString(), _getTabString(), _setTabList(), buildTab(), buildTabStops(), UT_String::c_str(), XAP_Frame::getCurrentView(), UT_GenericVector< T >::getItemCount(), UT_GenericVector< T >::getNthItem(), m_pFrame, m_pszTabStops, m_tabInfo, UT_DEBUGMSG, and UT_return_if_fail.

Referenced by AP_Win32Dialog_Tab::_onCommand(), AP_UnixDialog_Tab::onAddTab(), and AP_CocoaDialog_Tab_Proxy::setAction.

void AP_Dialog_Tab::_event_somethingChanged (  )  [protected]

References _controlEnable(), _getTabString(), buildTab(), UT_String::c_str(), UT_GenericVector< T >::getItemCount(), fl_TabStop::getLeader(), UT_GenericVector< T >::getNthItem(), fl_TabStop::getType(), id_BUTTON_CLEAR, id_BUTTON_CLEAR_ALL, id_BUTTON_SET, m_tabInfo, UT_DEBUGMSG, and UT_return_if_fail.

Referenced by _event_Clear(), _event_ClearAll(), _event_Set(), _event_TabSelected(), _event_Update(), AP_Win32Dialog_Tab::_onCommand(), AP_Win32Dialog_Tab::_onInitDialog(), AP_CocoaDialog_Tab::event_Leader, and AP_UnixDialog_Tab::onLeaderChanged().

void AP_Dialog_Tab::_event_TabChange ( void   )  [protected]

References _controlEnable(), and id_BUTTON_SET.

Referenced by AP_Win32Dialog_Tab::_onCommand(), AP_UnixDialog_Tab::onPositionChanged(), and AP_CocoaDialog_Tab_Proxy::positionEditAction.

void AP_Dialog_Tab::_event_TabSelected ( UT_sint32  index  )  [protected]

References _event_somethingChanged(), _getTabDimensionString(), UT_GenericVector< T >::getItemCount(), UT_GenericVector< T >::getNthItem(), m_tabInfo, UT_DEBUGMSG, and UT_return_if_fail.

Referenced by _event_Clear(), AP_Win32Dialog_Tab::_onCommand(), AP_UnixDialog_Tab::onTabSelected(), and AP_CocoaDialog_Tab_Proxy::tabListAction.

void AP_Dialog_Tab::_event_Update ( void   )  [protected]

Update the currently selected tab's properties. Ripped off from _event_Set(). This method does auto-apply.

References _deleteTabFromTabString(), _event_somethingChanged(), _getTabDimensionString(), _getTabString(), _setTabList(), _storeWindowData(), buildTab(), buildTabStops(), UT_String::c_str(), UT_GenericVector< T >::deleteNthItem(), XAP_Frame::getCurrentView(), UT_GenericVector< T >::getItemCount(), UT_GenericVector< T >::getNthItem(), m_pFrame, m_pszTabStops, m_tabInfo, and UT_return_if_fail.

Referenced by AP_UnixDialog_Tab::onAlignmentChanged(), AP_UnixDialog_Tab::onLeaderChanged(), AP_UnixDialog_Tab::onPositionChanged(), and AP_UnixDialog_Tab::onPositionFocusOut().

UT_Dimension AP_Dialog_Tab::_getDimension (  )  [inline, protected]

Referenced by AP_UnixDialog_Tab::onAddTab(), AP_UnixDialog_Tab::onDefaultTabChanged(), AP_UnixDialog_Tab::onDefaultTabFocusOut(), AP_UnixDialog_Tab::onPositionChanged(), and AP_UnixDialog_Tab::onPositionFocusOut().

char * AP_Dialog_Tab::_getTabDimensionString ( UT_sint32  tabIndex  )  [protected]

References buf, UT_GenericVector< T >::getItemCount(), UT_GenericVector< T >::getNthItem(), m_pszTabStops, m_tabInfo, and UT_return_val_if_fail.

Referenced by _event_Set(), _event_TabSelected(), _event_Update(), AP_Win32Dialog_Tab::_setTabList(), AP_UnixDialog_Tab::_setTabList(), and AP_CocoaDialog_Tab::_setTabList.

char * AP_Dialog_Tab::_getTabString ( fl_TabStop *  pTabInfo  )  [protected]

References buf, fl_TabStop::getOffset(), and m_pszTabStops.

Referenced by _event_Set(), _event_somethingChanged(), and _event_Update().

void AP_Dialog_Tab::_initEnableControls (  )  [protected]

References _controlEnable(), UT_GenericVector< T >::getItemCount(), id_ALIGN_BAR, id_BUTTON_CLEAR, id_BUTTON_CLEAR_ALL, id_BUTTON_SET, and m_tabInfo.

Referenced by _populateWindowData().

void AP_Dialog_Tab::_populateWindowData ( void   )  [protected]

References _initEnableControls(), _setTabList(), UT_GenericVector< T >::addItem(), AP_PREF_KEY_RulerUnits, FL_TAB_LEFT, gchar, XAP_Dialog::getApp(), FV_View::getBlockFormat(), XAP_Frame::getCurrentView(), UT_GenericVector< T >::getItemCount(), FV_View::getTopRulerInfo(), m_dim, AP_TopRulerInfo::m_iDefaultTabInterval, AP_TopRulerInfo::m_iTabStops, AP_TopRulerInfo::m_pfnEnumTabStops, m_pFrame, m_pszTabStops, AP_TopRulerInfo::m_pszTabStops, AP_TopRulerInfo::m_pVoidEnumTabStopsData, m_tabInfo, PP_getAttribute(), UT_convertInchesToDimensionString(), UT_convertToInches(), UT_DEBUGMSG, UT_determineDimension(), and UT_return_if_fail.

Referenced by AP_Win32Dialog_Tab::_onInitDialog(), AP_UnixDialog_Tab::runModal(), and AP_CocoaDialog_Tab::runModal.

virtual void AP_Dialog_Tab::_setTabList ( UT_uint32  count  )  [protected, pure virtual]

Implemented in AP_CocoaDialog_Tab, and AP_UnixDialog_Tab.

Referenced by _event_Clear(), _event_Set(), _event_Update(), and _populateWindowData().

void AP_Dialog_Tab::_storeWindowData ( void   )  [protected]

References XAP_Frame::getCurrentView(), m_closure, m_pCallbackFn, m_pFrame, m_pszTabStops, and UT_return_if_fail.

Referenced by _event_Update(), AP_Win32Dialog_Tab::_onCommand(), AP_UnixDialog_Tab::onAddTab(), AP_UnixDialog_Tab::onDefaultTabChanged(), AP_UnixDialog_Tab::onDefaultTabFocusOut(), AP_UnixDialog_Tab::onDeleteTab(), and AP_CocoaDialog_Tab::runModal.

unsigned char AP_Dialog_Tab::AlignmentToChar ( eTabType  a  )  [static]

References FL_TAB_BAR, FL_TAB_CENTER, FL_TAB_DECIMAL, FL_TAB_LEFT, FL_TAB_RIGHT, UT_ASSERT_HARMLESS, and UT_NOT_IMPLEMENTED.

Referenced by buildTab(), and AP_CocoaDialog_Tab::event_Alignment.

bool AP_Dialog_Tab::buildTab ( UT_String &  buffer  )  [protected]

References AlignmentToChar(), gchar, m_dim, MAX_TAB_LENGTH, UT_isValidDimensionString(), UT_reformatDimensionString(), and UT_String_sprintf().

Referenced by _event_Set(), _event_somethingChanged(), and _event_Update().

eTabType AP_Dialog_Tab::CharToAlignment ( unsigned char  ch  )  [static]

References UT_ASSERT_HARMLESS, and UT_NOT_IMPLEMENTED.

void AP_Dialog_Tab::clearList (  )

References _clearList(), m_tabInfo, and UT_VECTOR_PURGEALL.

AP_Dialog_Tab::tAnswer AP_Dialog_Tab::getAnswer ( void   )  const

References m_answer.

Referenced by s_doTabDlg().

virtual void AP_Dialog_Tab::runModal ( XAP_Frame *  pFrame  )  [pure virtual]

Implements XAP_Dialog_NonPersistent.

Implemented in AP_CocoaDialog_Tab, and AP_UnixDialog_Tab.

Referenced by AP_Dialog_Styles::ModifyTabs(), and s_doTabDlg().

AP_Dialog_Tab::SET_GATHER ( SelectTab  ,
UT_sint32
) [protected]

Reimplemented in AP_CocoaDialog_Tab, and AP_UnixDialog_Tab.

AP_Dialog_Tab::SET_GATHER ( Leader  ,
eTabLeader
) [protected]

Reimplemented in AP_CocoaDialog_Tab, and AP_UnixDialog_Tab.

AP_Dialog_Tab::SET_GATHER ( TabEdit  ,
const char *
) [protected]

Reimplemented in AP_CocoaDialog_Tab, and AP_UnixDialog_Tab.

AP_Dialog_Tab::SET_GATHER ( DefaultTabStop  ,
const gchar *
) [protected]

Reimplemented in AP_CocoaDialog_Tab, and AP_UnixDialog_Tab.

AP_Dialog_Tab::SET_GATHER ( Alignment  ,
eTabType
) [protected]

Reimplemented in AP_CocoaDialog_Tab, and AP_UnixDialog_Tab.

void AP_Dialog_Tab::setSaveCallback ( TabSaveCallBack  pCb,
void *  closure
)

References m_closure, and m_pCallbackFn.

Referenced by AP_Dialog_Styles::ModifyTabs(), and s_doTabDlg().

Member Data Documentation

char AP_Dialog_Tab::buf[20] [private]

Referenced by _getTabDimensionString(), and _getTabString().

tAnswer AP_Dialog_Tab::m_answer [protected]

Referenced by AP_Win32Dialog_Tab::_onCommand(), AP_CocoaDialog_Tab::event_Cancel, AP_CocoaDialog_Tab::event_OK, getAnswer(), and AP_CocoaDialog_Tab::runModal.

void* AP_Dialog_Tab::m_closure [private]

Referenced by _storeWindowData(), and setSaveCallback().

UT_Dimension AP_Dialog_Tab::m_dim [protected]

Referenced by AP_UnixDialog_Tab::_constructWindow(), _doSpin(), _populateWindowData(), and buildTab().

TabSaveCallBack AP_Dialog_Tab::m_pCallbackFn [private]

Referenced by _storeWindowData(), and setSaveCallback().

XAP_Frame* AP_Dialog_Tab::m_pFrame [protected]

Referenced by _event_Clear(), _event_ClearAll(), _event_Set(), _event_Update(), _populateWindowData(), _storeWindowData(), AP_Win32Dialog_Tab::runModal(), AP_UnixDialog_Tab::runModal(), and AP_CocoaDialog_Tab::runModal.

std::string AP_Dialog_Tab::m_pszTabStops [protected]

Referenced by _deleteTabFromTabString(), _event_Clear(), _event_ClearAll(), _event_Set(), _event_Update(), _getTabDimensionString(), _getTabString(), _populateWindowData(), and _storeWindowData().

UT_GenericVector<fl_TabStop*> AP_Dialog_Tab::m_tabInfo [protected]

Referenced by _event_Clear(), _event_ClearAll(), _event_Set(), _event_somethingChanged(), _event_TabSelected(), _event_Update(), _getTabDimensionString(), _initEnableControls(), _populateWindowData(), clearList(), and ~AP_Dialog_Tab().

The documentation for this class was generated from the following files:
Generated on Sun Feb 14 2021 for AbiWord by  doxygen 1.7.1
