AbiWord: AP_Dialog_SplitCells Class Reference

#include <ap_Dialog_SplitCells.h>

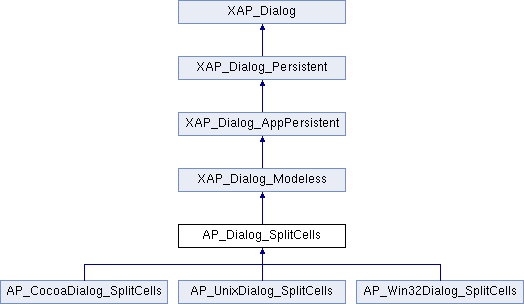

Inheritance diagram for AP_Dialog_SplitCells:

List of all members.

Public Types
enum	tAnswer { a_OK, a_CANCEL }
Public Member Functions
	AP_Dialog_SplitCells (XAP_DialogFactory *pDlgFactory, XAP_Dialog_Id id)
virtual	~AP_Dialog_SplitCells (void)
virtual void	runModeless (XAP_Frame *pFrame)=0
AP_Dialog_SplitCells::tAnswer	getAnswer (void) const
PT_DocPosition	getCellSource (void)
PT_DocPosition	getCellDestination (void)
virtual void	startUpdater (void)
virtual void	stopUpdater (void)
virtual void	setSensitivity (AP_CellSplitType splitThis, bool bSens)=0
virtual void	setActiveFrame (XAP_Frame *pFrame)
void	ConstructWindowName (void)
void	setAllSensitivities (void)
void	event_update (void)
void	finalize (void)
void	setSplitType (AP_CellSplitType iMergeType)
void	onSplit (void)
Static Public Member Functions
static void	autoUpdateMC (UT_Worker *pTimer)
Protected Attributes
AP_Dialog_SplitCells::tAnswer	m_answer
char	m_WindowName [100]
Private Attributes
PT_DocPosition	m_iCellSource
PT_DocPosition	m_iCellDestination
AP_CellSplitType	m_SplitType
UT_sint32	m_iLeft
UT_sint32	m_iRight
UT_sint32	m_iTop
UT_sint32	m_iBot
UT_sint32	m_iNumRows
UT_sint32	m_iNumCols
fp_TableContainer *	m_pTab
UT_Timer *	m_pAutoUpdaterMC
bool	m_bDestroy_says_stopupdating
bool	m_bAutoUpdate_happening_now

Member Enumeration Documentation

enum AP_Dialog_SplitCells::tAnswer

Enumerator:

a_OK
a_CANCEL

Constructor & Destructor Documentation

AP_Dialog_SplitCells::AP_Dialog_SplitCells	(	XAP_DialogFactory *	pDlgFactory,
		XAP_Dialog_Id	id
	)

AP_Dialog_SplitCells::~AP_Dialog_SplitCells ( void ) [virtual]

References stopUpdater().

Member Function Documentation

void AP_Dialog_SplitCells::autoUpdateMC ( UT_Worker * pTimer ) [static]

Autoupdater of the dialog.

References XAP_Dialog::getApp(), FV_View::getDocument(), UT_Worker::getInstanceData(), XAP_App::getLastFocussedFrame(), AD_Document::isPieceTableChanging(), m_bAutoUpdate_happening_now, m_bDestroy_says_stopupdating, setAllSensitivities(), and UT_return_if_fail.

Referenced by startUpdater().

void AP_Dialog_SplitCells::ConstructWindowName ( void )

References XAP_Dialog_Modeless::BuildWindowName(), FREEP, gchar, XAP_App::getStringSet(), XAP_StringSet::getValue(), XAP_Dialog::m_pApp, m_WindowName, and UT_XML_cloneNoAmpersands().

Referenced by AP_UnixDialog_SplitCells::_constructWindow(), AP_Win32Dialog_SplitCells::activate(), AP_UnixDialog_SplitCells::activate(), AP_Win32Dialog_SplitCells::notifyActiveFrame(), and AP_UnixDialog_SplitCells::notifyActiveFrame().

void AP_Dialog_SplitCells::event_update ( void )

void AP_Dialog_SplitCells::finalize ( void )

References XAP_Dialog_Modeless::modeless_cleanup(), and stopUpdater().

Referenced by AP_Win32Dialog_SplitCells::destroy(), AP_UnixDialog_SplitCells::destroy(), and AP_CocoaDialog_SplitCells::destroy.

AP_Dialog_SplitCells::tAnswer AP_Dialog_SplitCells::getAnswer ( void ) const

References m_answer.

PT_DocPosition AP_Dialog_SplitCells::getCellDestination ( void )

References m_iCellDestination.

PT_DocPosition AP_Dialog_SplitCells::getCellSource ( void )

References m_iCellSource.

void AP_Dialog_SplitCells::onSplit ( void )

Method to actually do the cell merge.

References FV_View::cmdSplitCells(), XAP_Dialog::getApp(), m_SplitType, and setAllSensitivities().

Referenced by AP_Win32Dialog_SplitCells::_onCommand(), s_split_above(), s_split_below(), s_split_hori_mid(), s_split_left(), s_split_right(), and s_split_vert_mid().

virtual void AP_Dialog_SplitCells::runModeless ( XAP_Frame * pFrame ) [pure virtual]

Implements XAP_Dialog_Modeless.

Implemented in AP_CocoaDialog_SplitCells, and AP_UnixDialog_SplitCells.

Referenced by s_doSplitCellsDlg().

void AP_Dialog_SplitCells::setActiveFrame ( XAP_Frame * pFrame ) [virtual]

Reimplemented from XAP_Dialog_Modeless.

References XAP_Dialog_Modeless::getActiveFrame(), and XAP_Dialog_Modeless::notifyActiveFrame().

void AP_Dialog_SplitCells::setAllSensitivities ( void )

This method sets the sensitivity of the radio buttons to above/below/left/right merges Because we can't merge to the left of column zero for example.

Call this right after contructing the widget and before dropping into the main loop.

References FL_DocLayout::findBlockAtPosition(), fl_BlockLayout::findPointCoords(), XAP_Dialog::getApp(), FV_View::getCellParams(), fp_Container::getContainer(), fp_ContainerObject::getContainerType(), FV_View::getLayout(), fp_Run::getLine(), fp_TableContainer::getNumCols(), fp_TableContainer::getNumRows(), FV_View::getPoint(), hori_left, hori_mid, hori_right, FV_View::isInTable(), m_iBot, m_iCellSource, m_iLeft, m_iNumCols, m_iNumRows, m_iRight, m_iTop, m_pTab, setSensitivity(), UT_return_if_fail, vert_above, vert_below, and vert_mid.

Referenced by AP_Win32Dialog_SplitCells::_onInitDialog(), AP_UnixDialog_SplitCells::_populateWindowData(), AP_CocoaDialog_SplitCells::_populateWindowData, AP_Win32Dialog_SplitCells::activate(), AP_UnixDialog_SplitCells::activate(), AP_CocoaDialog_SplitCells::activate, autoUpdateMC(), AP_Win32Dialog_SplitCells::notifyActiveFrame(), AP_UnixDialog_SplitCells::notifyActiveFrame(), AP_CocoaDialog_SplitCells::notifyActiveFrame, and onSplit().

virtual void AP_Dialog_SplitCells::setSensitivity	(	AP_CellSplitType	splitThis,
		bool	bSens
	)			`[pure virtual]`

Implemented in AP_CocoaDialog_SplitCells, and AP_UnixDialog_SplitCells.

Referenced by setAllSensitivities().

void AP_Dialog_SplitCells::setSplitType ( AP_CellSplitType iSplitType )

Set the merge Type

References m_SplitType.

Referenced by AP_Win32Dialog_SplitCells::_onCommand(), s_split_above(), s_split_below(), s_split_hori_mid(), s_split_left(), s_split_right(), and s_split_vert_mid().

void AP_Dialog_SplitCells::startUpdater ( void ) [virtual]

References autoUpdateMC(), m_bAutoUpdate_happening_now, m_bDestroy_says_stopupdating, m_pAutoUpdaterMC, UT_Timer::set(), UT_Timer::start(), and UT_Timer::static_constructor().

Referenced by AP_Win32Dialog_SplitCells::runModeless(), AP_UnixDialog_SplitCells::runModeless(), and AP_CocoaDialog_SplitCells::runModeless.

void AP_Dialog_SplitCells::stopUpdater ( void ) [virtual]

References DELETEP, m_bDestroy_says_stopupdating, m_pAutoUpdaterMC, and UT_Timer::stop().

Referenced by finalize(), and ~AP_Dialog_SplitCells().

Member Data Documentation

AP_Dialog_SplitCells::tAnswer AP_Dialog_SplitCells::m_answer [protected]

Referenced by AP_Win32Dialog_SplitCells::_onCommand(), AP_Win32Dialog_SplitCells::event_Close(), AP_UnixDialog_SplitCells::event_Close(), AP_CocoaDialog_SplitCells::event_Close, and getAnswer().

bool AP_Dialog_SplitCells::m_bAutoUpdate_happening_now [private]

Referenced by autoUpdateMC(), and startUpdater().

bool AP_Dialog_SplitCells::m_bDestroy_says_stopupdating [private]

Referenced by autoUpdateMC(), startUpdater(), and stopUpdater().

UT_sint32 AP_Dialog_SplitCells::m_iBot [private]

Referenced by setAllSensitivities().

PT_DocPosition AP_Dialog_SplitCells::m_iCellDestination [private]

Referenced by getCellDestination().

PT_DocPosition AP_Dialog_SplitCells::m_iCellSource [private]

Referenced by getCellSource(), and setAllSensitivities().

UT_sint32 AP_Dialog_SplitCells::m_iLeft [private]

Referenced by setAllSensitivities().

UT_sint32 AP_Dialog_SplitCells::m_iNumCols [private]

Referenced by setAllSensitivities().

UT_sint32 AP_Dialog_SplitCells::m_iNumRows [private]

Referenced by setAllSensitivities().

UT_sint32 AP_Dialog_SplitCells::m_iRight [private]

Referenced by setAllSensitivities().

UT_sint32 AP_Dialog_SplitCells::m_iTop [private]

Referenced by setAllSensitivities().

UT_Timer* AP_Dialog_SplitCells::m_pAutoUpdaterMC [private]

Referenced by startUpdater(), and stopUpdater().

fp_TableContainer* AP_Dialog_SplitCells::m_pTab [private]

Referenced by setAllSensitivities().

AP_CellSplitType AP_Dialog_SplitCells::m_SplitType [private]

Referenced by onSplit(), and setSplitType().

char AP_Dialog_SplitCells::m_WindowName[100] [protected]

Referenced by AP_UnixDialog_SplitCells::_constructWindow(), AP_Win32Dialog_SplitCells::activate(), AP_UnixDialog_SplitCells::activate(), ConstructWindowName(), AP_CocoaDialog_SplitCells::getWindowName, AP_Win32Dialog_SplitCells::notifyActiveFrame(), and AP_UnixDialog_SplitCells::notifyActiveFrame().

The documentation for this class was generated from the following files:
