AbiWord: AP_Dialog_MergeCells Class Reference

#include <ap_Dialog_MergeCells.h>

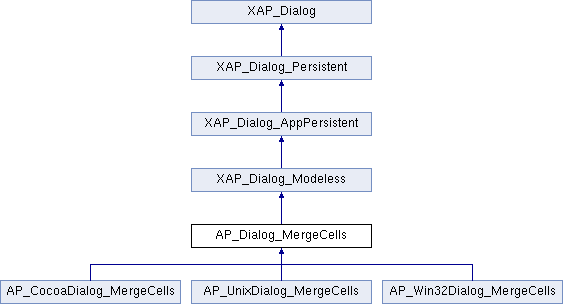

Inheritance diagram for AP_Dialog_MergeCells:

List of all members.

Public Types
enum	tAnswer { a_OK, a_CANCEL }
enum	mergeWithCell { radio_left, radio_right, radio_above, radio_below }
Public Member Functions
	AP_Dialog_MergeCells (XAP_DialogFactory *pDlgFactory, XAP_Dialog_Id id)
virtual	~AP_Dialog_MergeCells (void)
virtual void	runModeless (XAP_Frame *pFrame)=0
AP_Dialog_MergeCells::tAnswer	getAnswer (void) const
PT_DocPosition	getCellSource (void)
PT_DocPosition	getCellDestination (void)
virtual void	startUpdater (void)
virtual void	stopUpdater (void)
virtual void	setSensitivity (mergeWithCell mergeThis, bool bSens)=0
virtual void	setActiveFrame (XAP_Frame *pFrame)
void	ConstructWindowName (void)
void	setAllSensitivities (void)
void	event_update (void)
void	finalize (void)
void	setMergeType (mergeWithCell iMergeType)
void	onMerge (void)
Static Public Member Functions
static void	autoUpdateMC (UT_Worker *pTimer)
Protected Attributes
AP_Dialog_MergeCells::tAnswer	m_answer
char	m_WindowName [100]
Private Member Functions
void	_generateSrcDest (void)
Private Attributes
PT_DocPosition	m_iCellSource
PT_DocPosition	m_iCellDestination
AP_Dialog_MergeCells::mergeWithCell	m_mergeType
UT_sint32	m_iLeft
UT_sint32	m_iRight
UT_sint32	m_iTop
UT_sint32	m_iBot
UT_sint32	m_iNumRows
UT_sint32	m_iNumCols
fp_TableContainer *	m_pTab
UT_Timer *	m_pAutoUpdaterMC
bool	m_bDestroy_says_stopupdating
bool	m_bAutoUpdate_happening_now

Member Enumeration Documentation

enum AP_Dialog_MergeCells::mergeWithCell

Enumerator:

radio_left
radio_right
radio_above
radio_below

enum AP_Dialog_MergeCells::tAnswer

Enumerator:

a_OK
a_CANCEL

Constructor & Destructor Documentation

AP_Dialog_MergeCells::AP_Dialog_MergeCells	(	XAP_DialogFactory *	pDlgFactory,
		XAP_Dialog_Id	id
	)

AP_Dialog_MergeCells::~AP_Dialog_MergeCells ( void ) [virtual]

References stopUpdater().

Member Function Documentation

void AP_Dialog_MergeCells::_generateSrcDest ( void ) [private]

Call this method after pressing OK to read out the radio buttons and store results in the output variables

It actuall calculates the positions of the source and destination positions of the cells to be merged.

References FV_View::findCellPosAt(), XAP_Frame::getCurrentView(), XAP_App::getLastFocussedFrame(), m_iBot, m_iCellDestination, m_iCellSource, m_iLeft, m_iRight, m_iTop, m_mergeType, XAP_Dialog::m_pApp, radio_above, radio_below, radio_left, and radio_right.

Referenced by onMerge().

void AP_Dialog_MergeCells::autoUpdateMC ( UT_Worker * pTimer ) [static]

Autoupdater of the dialog.

References XAP_Dialog::getApp(), FV_View::getDocument(), UT_Worker::getInstanceData(), XAP_App::getLastFocussedFrame(), AD_Document::isPieceTableChanging(), m_bAutoUpdate_happening_now, m_bDestroy_says_stopupdating, setAllSensitivities(), and UT_return_if_fail.

Referenced by startUpdater().

void AP_Dialog_MergeCells::ConstructWindowName ( void )

References XAP_Dialog_Modeless::BuildWindowName(), FREEP, gchar, XAP_App::getStringSet(), XAP_StringSet::getValue(), XAP_Dialog::m_pApp, m_WindowName, and UT_XML_cloneNoAmpersands().

Referenced by AP_UnixDialog_MergeCells::_constructWindow(), AP_Win32Dialog_MergeCells::activate(), AP_UnixDialog_MergeCells::activate(), AP_Win32Dialog_MergeCells::notifyActiveFrame(), and AP_UnixDialog_MergeCells::notifyActiveFrame().

void AP_Dialog_MergeCells::event_update ( void )

void AP_Dialog_MergeCells::finalize ( void )

References XAP_Dialog_Modeless::modeless_cleanup(), and stopUpdater().

Referenced by AP_Win32Dialog_MergeCells::destroy(), AP_UnixDialog_MergeCells::destroy(), and AP_CocoaDialog_MergeCells::destroy.

AP_Dialog_MergeCells::tAnswer AP_Dialog_MergeCells::getAnswer ( void ) const

References m_answer.

PT_DocPosition AP_Dialog_MergeCells::getCellDestination ( void )

References m_iCellDestination.

PT_DocPosition AP_Dialog_MergeCells::getCellSource ( void )

References m_iCellSource.

void AP_Dialog_MergeCells::onMerge ( void )

Method to actually do the cell merge.

References _generateSrcDest(), FV_View::cmdMergeCells(), XAP_Dialog::getApp(), m_iCellDestination, m_iCellSource, and setAllSensitivities().

Referenced by AP_Win32Dialog_MergeCells::_onCommand(), s_merge_above(), s_merge_below(), s_merge_left(), and s_merge_right().

virtual void AP_Dialog_MergeCells::runModeless ( XAP_Frame * pFrame ) [pure virtual]

Implements XAP_Dialog_Modeless.

Implemented in AP_CocoaDialog_MergeCells, and AP_UnixDialog_MergeCells.

Referenced by s_doMergeCellsDlg().

void AP_Dialog_MergeCells::setActiveFrame ( XAP_Frame * pFrame ) [virtual]

Reimplemented from XAP_Dialog_Modeless.

References XAP_Dialog_Modeless::getActiveFrame(), and XAP_Dialog_Modeless::notifyActiveFrame().

void AP_Dialog_MergeCells::setAllSensitivities ( void )

This method sets the sensitivity of the radio buttons to above/below/left/right merges Because we can't merge to the left of column zero for example.

Call this right after contructing the widget and before dropping into the main loop.

References FL_DocLayout::findBlockAtPosition(), fl_BlockLayout::findPointCoords(), XAP_Dialog::getApp(), FV_View::getCellParams(), fp_Container::getContainer(), fp_ContainerObject::getContainerType(), FV_View::getLayout(), fp_Run::getLine(), fp_TableContainer::getNumCols(), fp_TableContainer::getNumRows(), FV_View::getPoint(), FV_View::isInTable(), m_iBot, m_iCellSource, m_iLeft, m_iNumCols, m_iNumRows, m_iRight, m_iTop, m_pTab, radio_above, radio_below, radio_left, radio_right, setSensitivity(), UT_ASSERT, UT_return_if_fail, and UT_SHOULD_NOT_HAPPEN.

Referenced by AP_Win32Dialog_MergeCells::_onInitDialog(), AP_UnixDialog_MergeCells::_populateWindowData(), AP_CocoaDialog_MergeCells::_populateWindowData, AP_Win32Dialog_MergeCells::activate(), AP_UnixDialog_MergeCells::activate(), AP_CocoaDialog_MergeCells::activate, autoUpdateMC(), AP_Win32Dialog_MergeCells::notifyActiveFrame(), AP_UnixDialog_MergeCells::notifyActiveFrame(), AP_CocoaDialog_MergeCells::notifyActiveFrame, and onMerge().

void AP_Dialog_MergeCells::setMergeType ( mergeWithCell iMergeType )

Set the merge Type

References m_mergeType.

Referenced by AP_Win32Dialog_MergeCells::_onCommand(), s_merge_above(), s_merge_below(), s_merge_left(), and s_merge_right().

virtual void AP_Dialog_MergeCells::setSensitivity	(	mergeWithCell	mergeThis,
		bool	bSens
	)			`[pure virtual]`

Implemented in AP_CocoaDialog_MergeCells, and AP_UnixDialog_MergeCells.

Referenced by setAllSensitivities().

void AP_Dialog_MergeCells::startUpdater ( void ) [virtual]

References autoUpdateMC(), m_bAutoUpdate_happening_now, m_bDestroy_says_stopupdating, m_pAutoUpdaterMC, UT_Timer::set(), UT_Timer::start(), and UT_Timer::static_constructor().

Referenced by AP_Win32Dialog_MergeCells::runModeless(), AP_UnixDialog_MergeCells::runModeless(), and AP_CocoaDialog_MergeCells::runModeless.

void AP_Dialog_MergeCells::stopUpdater ( void ) [virtual]

References DELETEP, m_bDestroy_says_stopupdating, m_pAutoUpdaterMC, and UT_Timer::stop().

Referenced by finalize(), and ~AP_Dialog_MergeCells().

Member Data Documentation

AP_Dialog_MergeCells::tAnswer AP_Dialog_MergeCells::m_answer [protected]

Referenced by AP_Win32Dialog_MergeCells::_onCommand(), AP_Win32Dialog_MergeCells::event_Close(), AP_UnixDialog_MergeCells::event_Close(), AP_CocoaDialog_MergeCells::event_Close, and getAnswer().

bool AP_Dialog_MergeCells::m_bAutoUpdate_happening_now [private]

Referenced by autoUpdateMC(), and startUpdater().

bool AP_Dialog_MergeCells::m_bDestroy_says_stopupdating [private]

Referenced by autoUpdateMC(), startUpdater(), and stopUpdater().

UT_sint32 AP_Dialog_MergeCells::m_iBot [private]

Referenced by _generateSrcDest(), and setAllSensitivities().

PT_DocPosition AP_Dialog_MergeCells::m_iCellDestination [private]

Referenced by _generateSrcDest(), getCellDestination(), and onMerge().

PT_DocPosition AP_Dialog_MergeCells::m_iCellSource [private]

Referenced by _generateSrcDest(), getCellSource(), onMerge(), and setAllSensitivities().

UT_sint32 AP_Dialog_MergeCells::m_iLeft [private]

Referenced by _generateSrcDest(), and setAllSensitivities().

UT_sint32 AP_Dialog_MergeCells::m_iNumCols [private]

Referenced by setAllSensitivities().

UT_sint32 AP_Dialog_MergeCells::m_iNumRows [private]

Referenced by setAllSensitivities().

UT_sint32 AP_Dialog_MergeCells::m_iRight [private]

Referenced by _generateSrcDest(), and setAllSensitivities().

UT_sint32 AP_Dialog_MergeCells::m_iTop [private]

Referenced by _generateSrcDest(), and setAllSensitivities().

AP_Dialog_MergeCells::mergeWithCell AP_Dialog_MergeCells::m_mergeType [private]

Referenced by _generateSrcDest(), and setMergeType().

UT_Timer* AP_Dialog_MergeCells::m_pAutoUpdaterMC [private]

Referenced by startUpdater(), and stopUpdater().

fp_TableContainer* AP_Dialog_MergeCells::m_pTab [private]

Referenced by setAllSensitivities().

char AP_Dialog_MergeCells::m_WindowName[100] [protected]

Referenced by AP_UnixDialog_MergeCells::_constructWindow(), AP_Win32Dialog_MergeCells::activate(), AP_UnixDialog_MergeCells::activate(), ConstructWindowName(), AP_CocoaDialog_MergeCells::getWindowName, AP_Win32Dialog_MergeCells::notifyActiveFrame(), and AP_UnixDialog_MergeCells::notifyActiveFrame().

The documentation for this class was generated from the following files:
